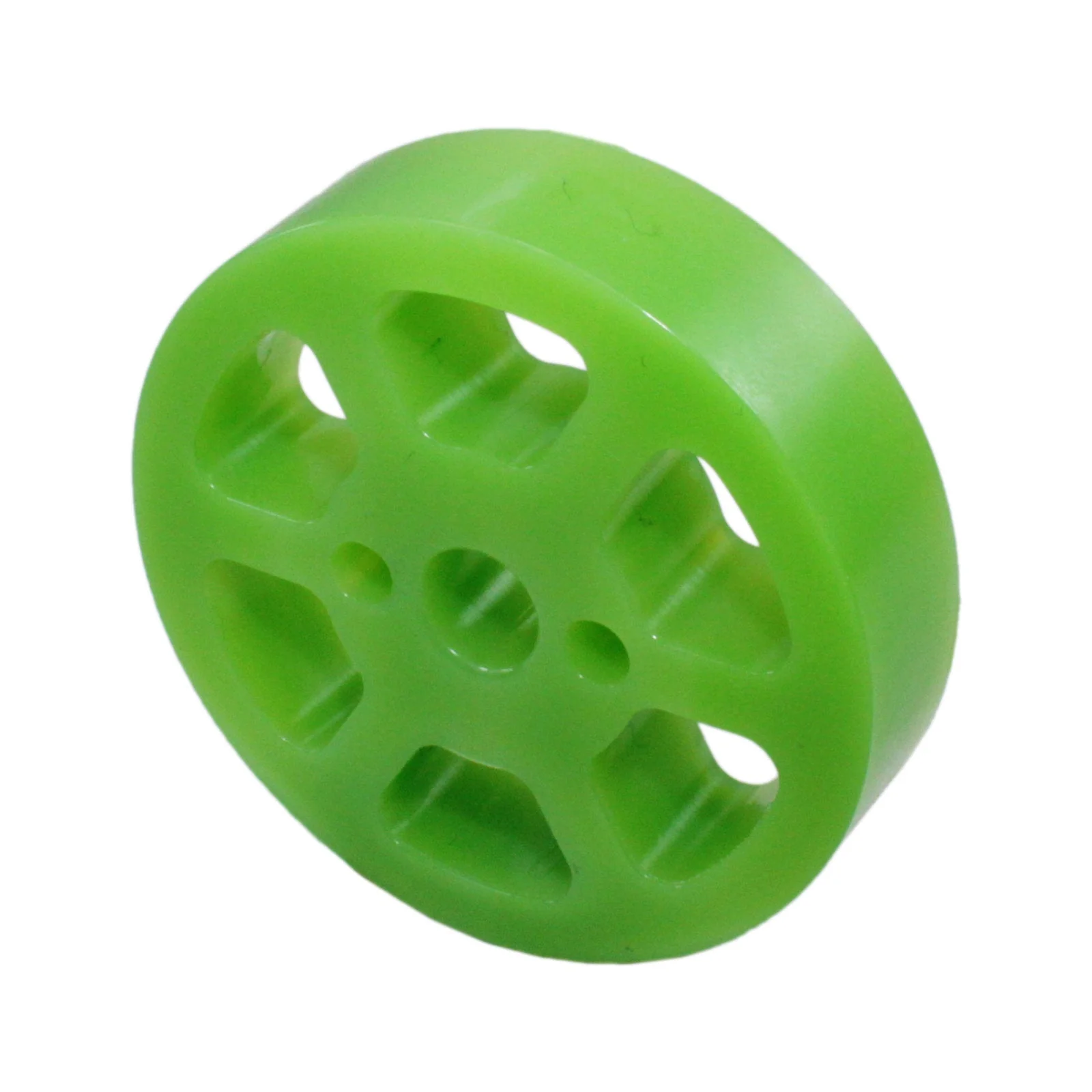

Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17

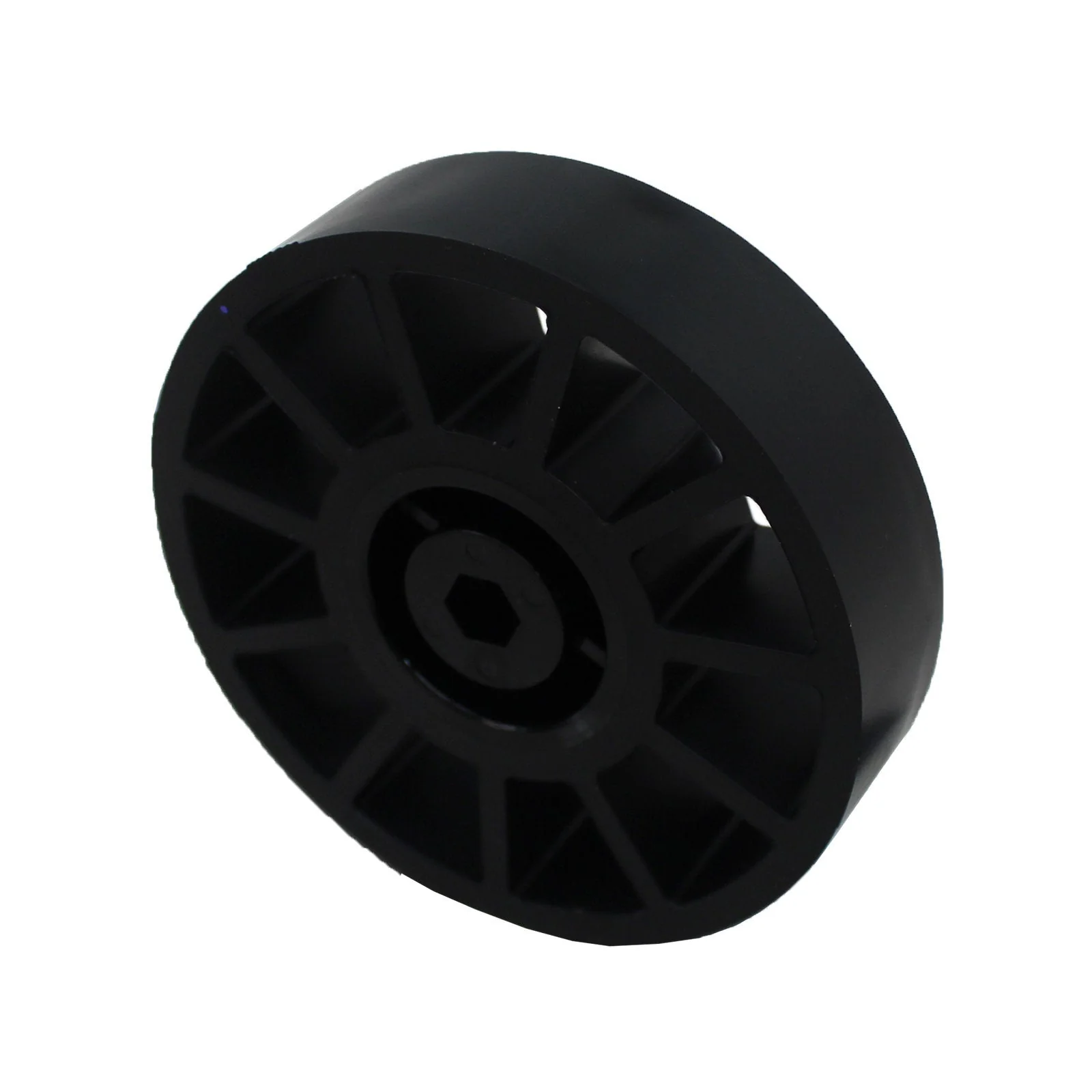

Product image 18

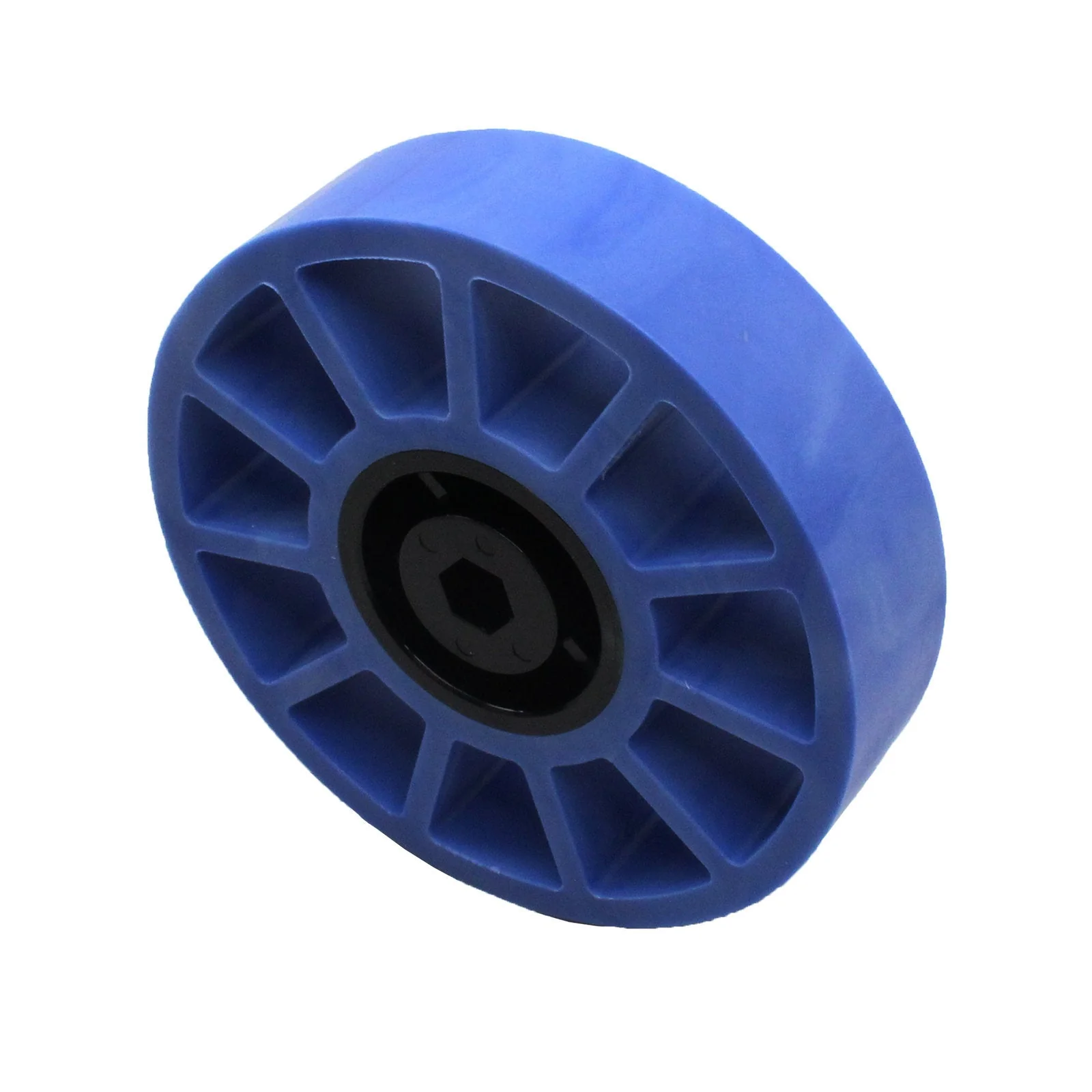

Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26

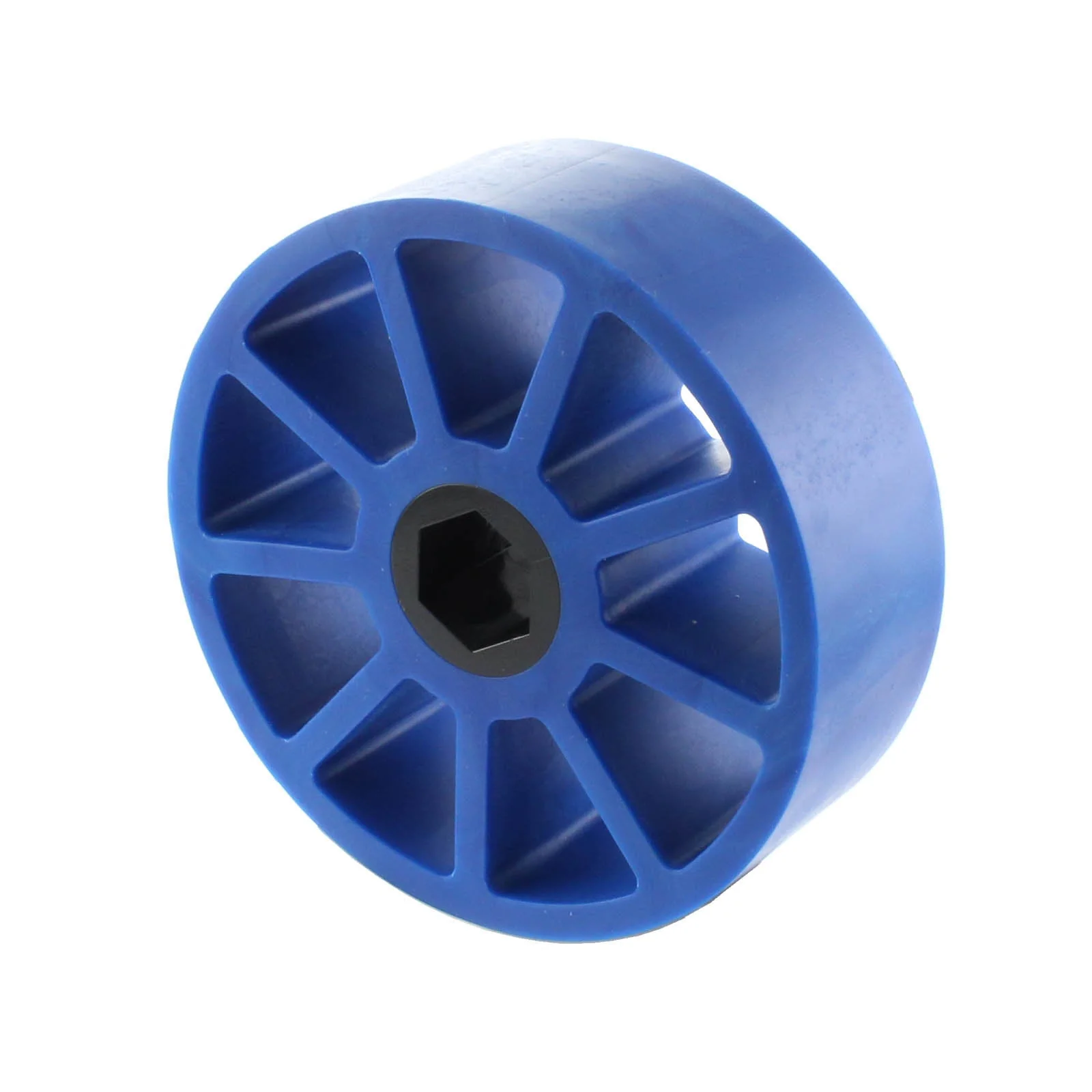

Product image 27
Product image 28
Product image 29
Product image 30
Product image 31
Product image 32

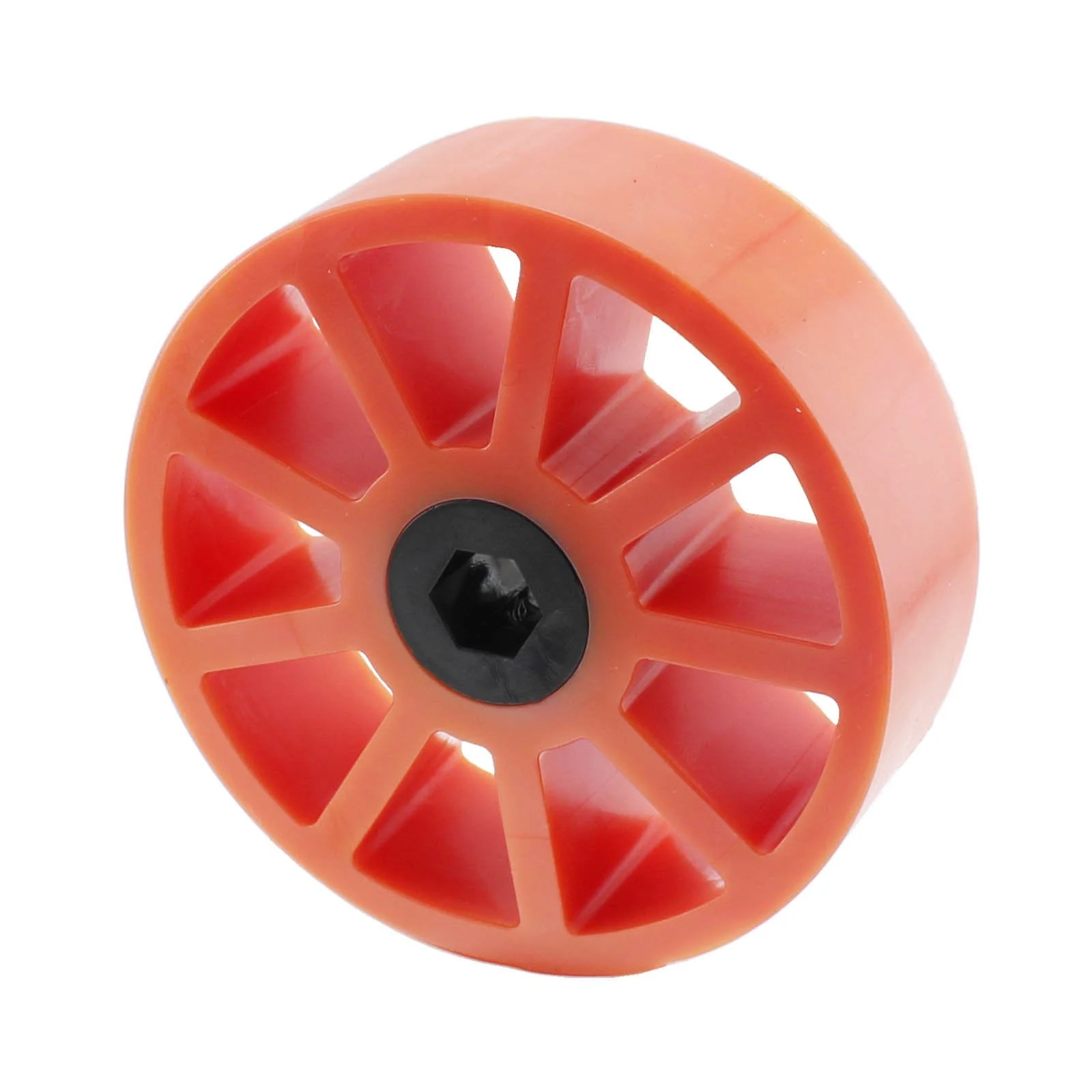

Product image 33
Product image 34
Product image 35
Product image 36
Product image 37
Product image 38

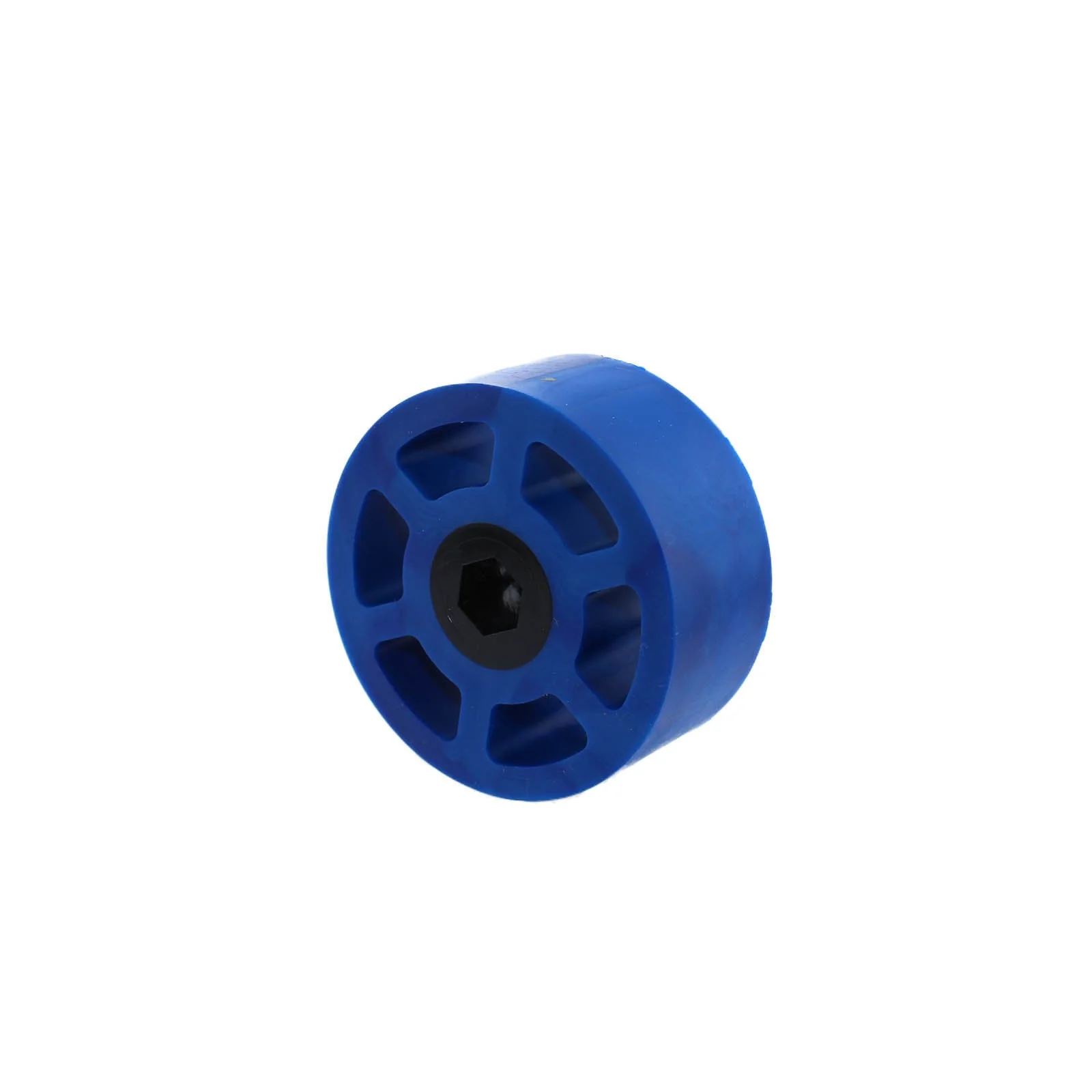

Product image 39
Product image 40

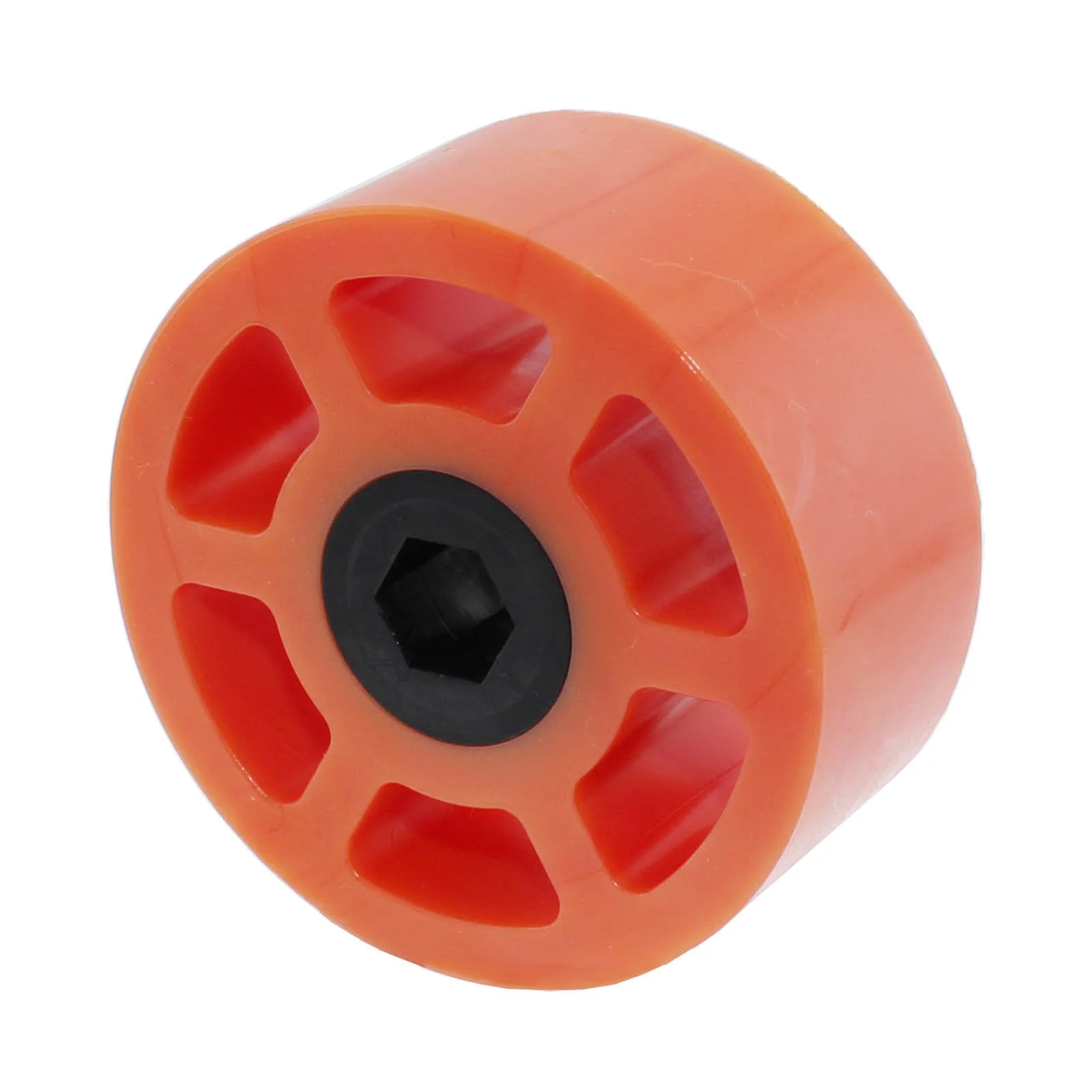

Product image 41
Product image 42
Product image 43
Product image 44
Product image 45
Product image 46
Product image 47
Product image 48
Product image 49
Product image 50

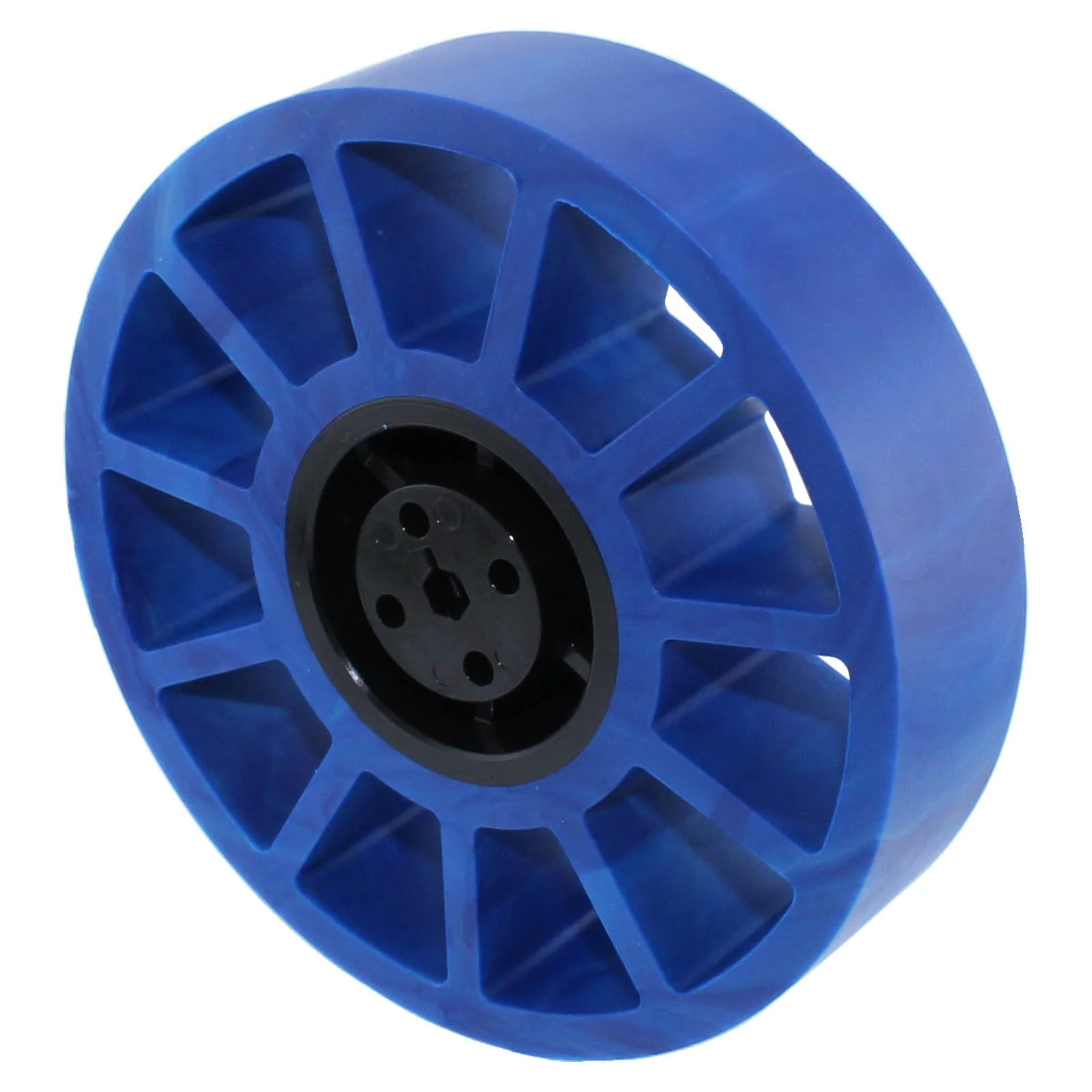

Product image 51
Product image 52
Product image 53

Compliant Wheels

Compliant Wheels

  • Description
  • Specifications

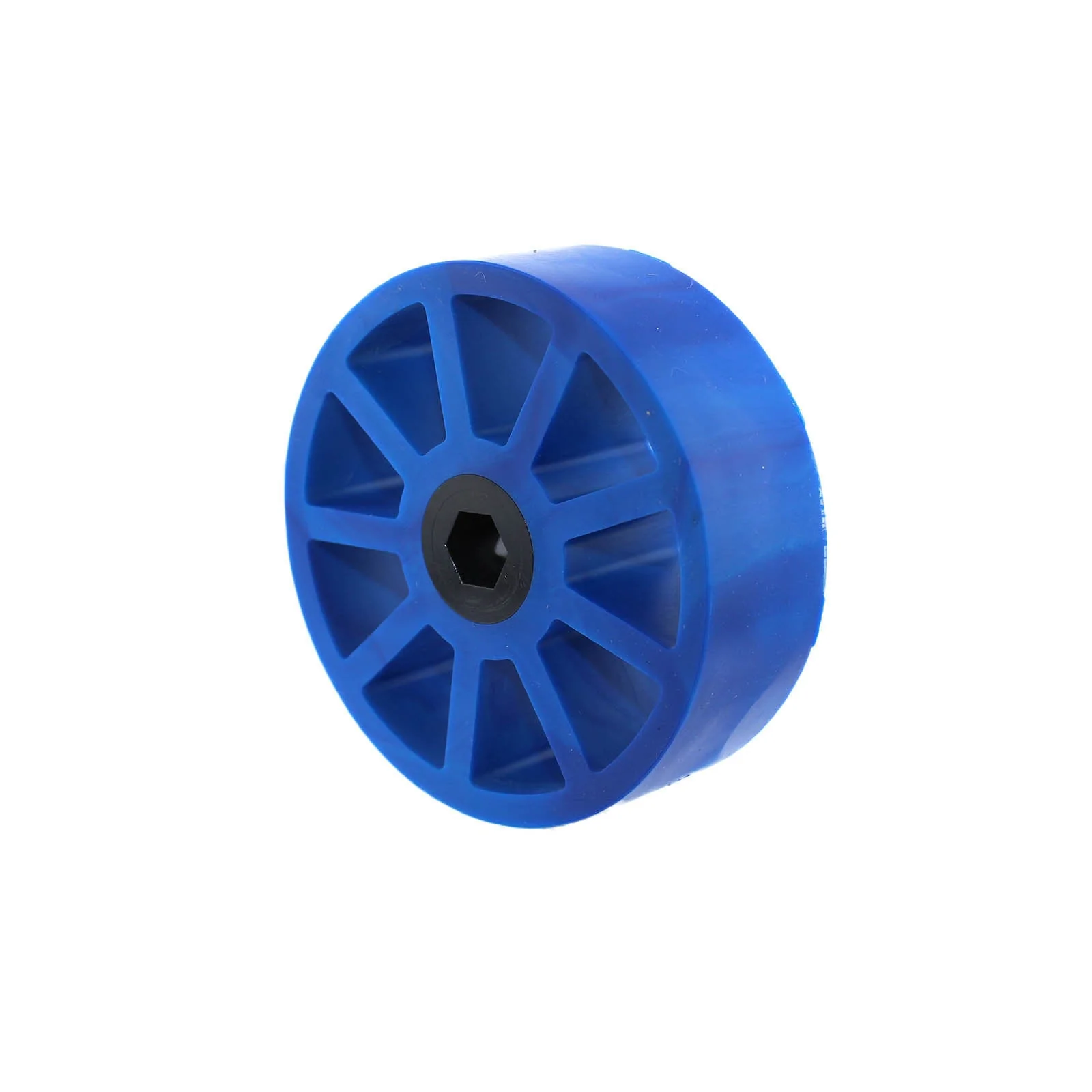

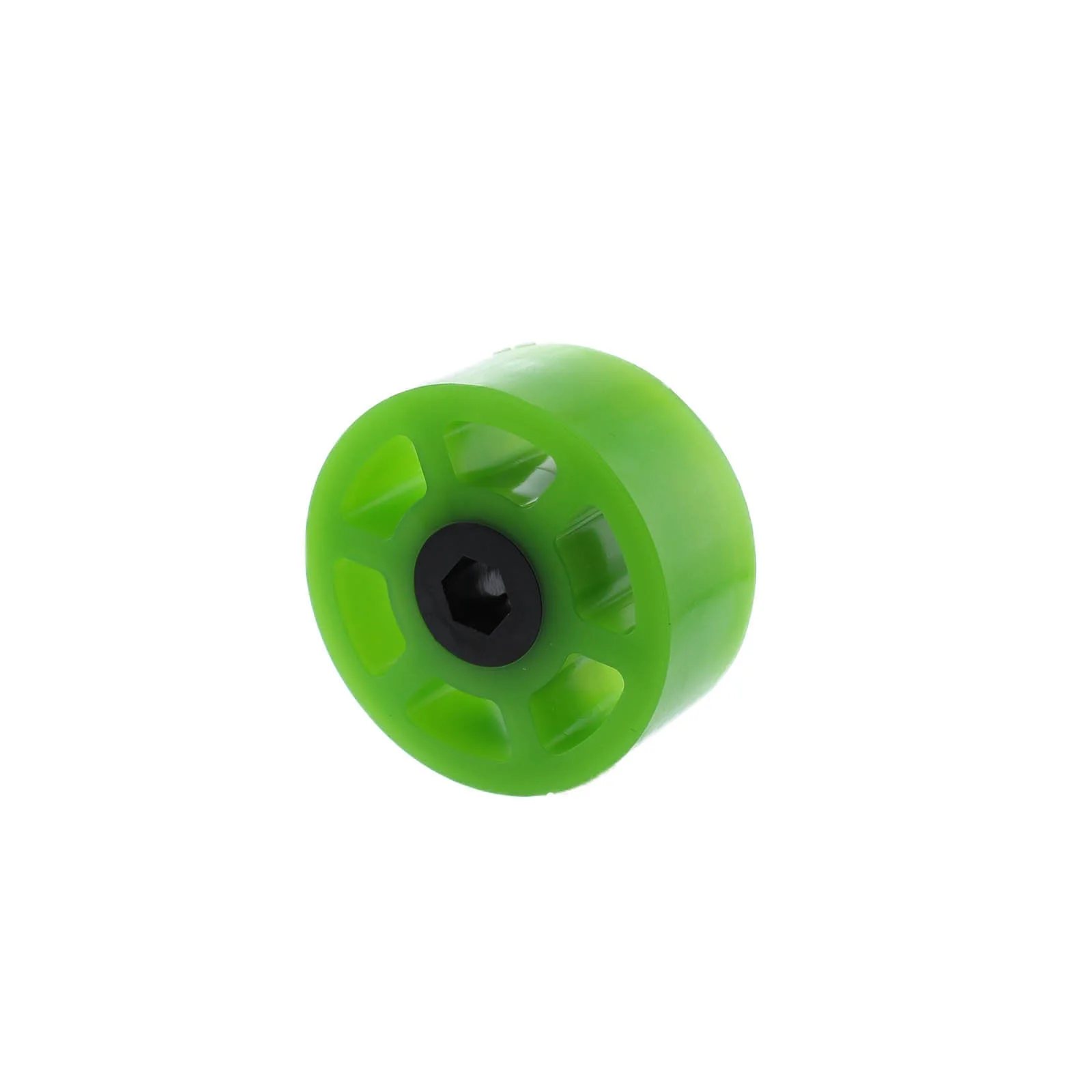

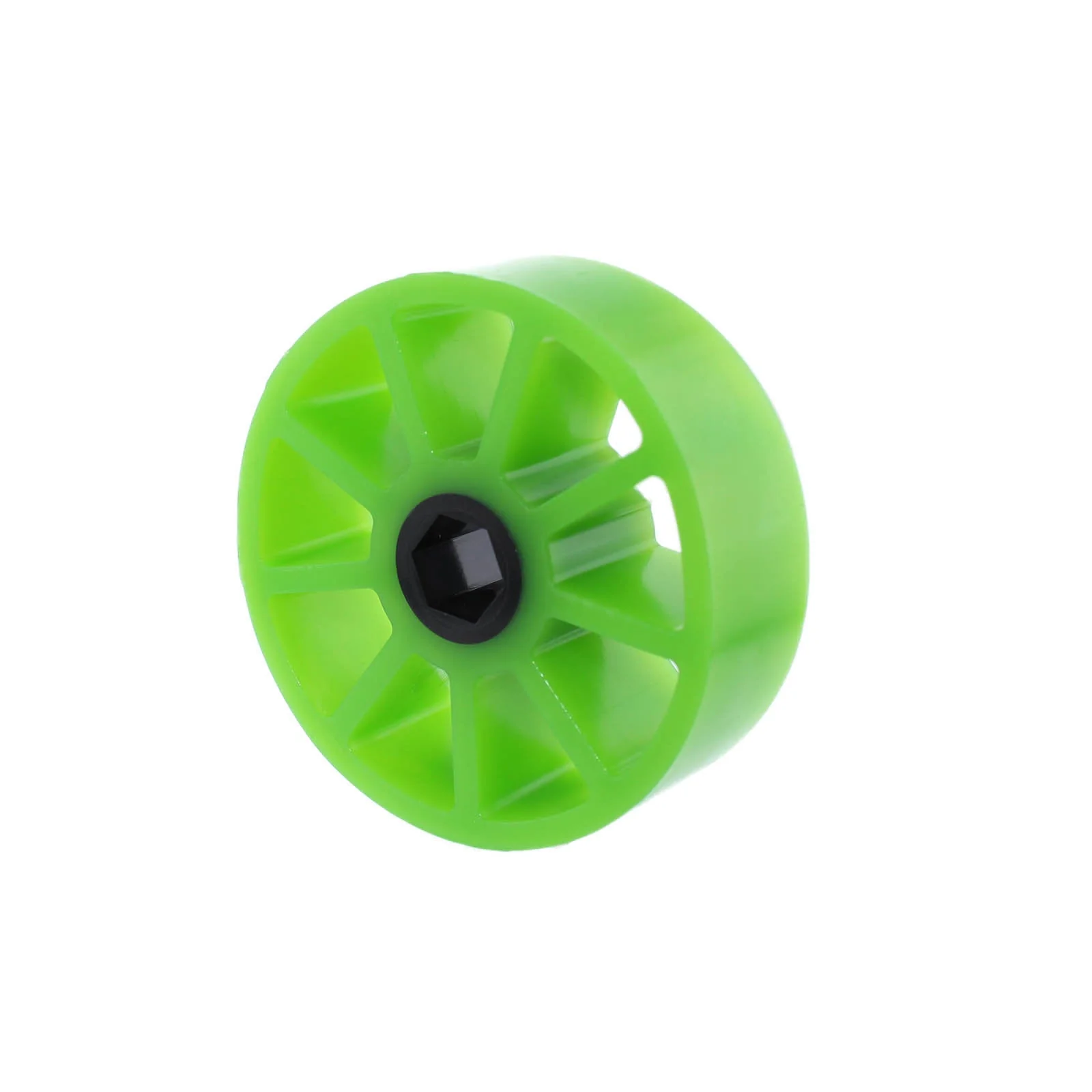

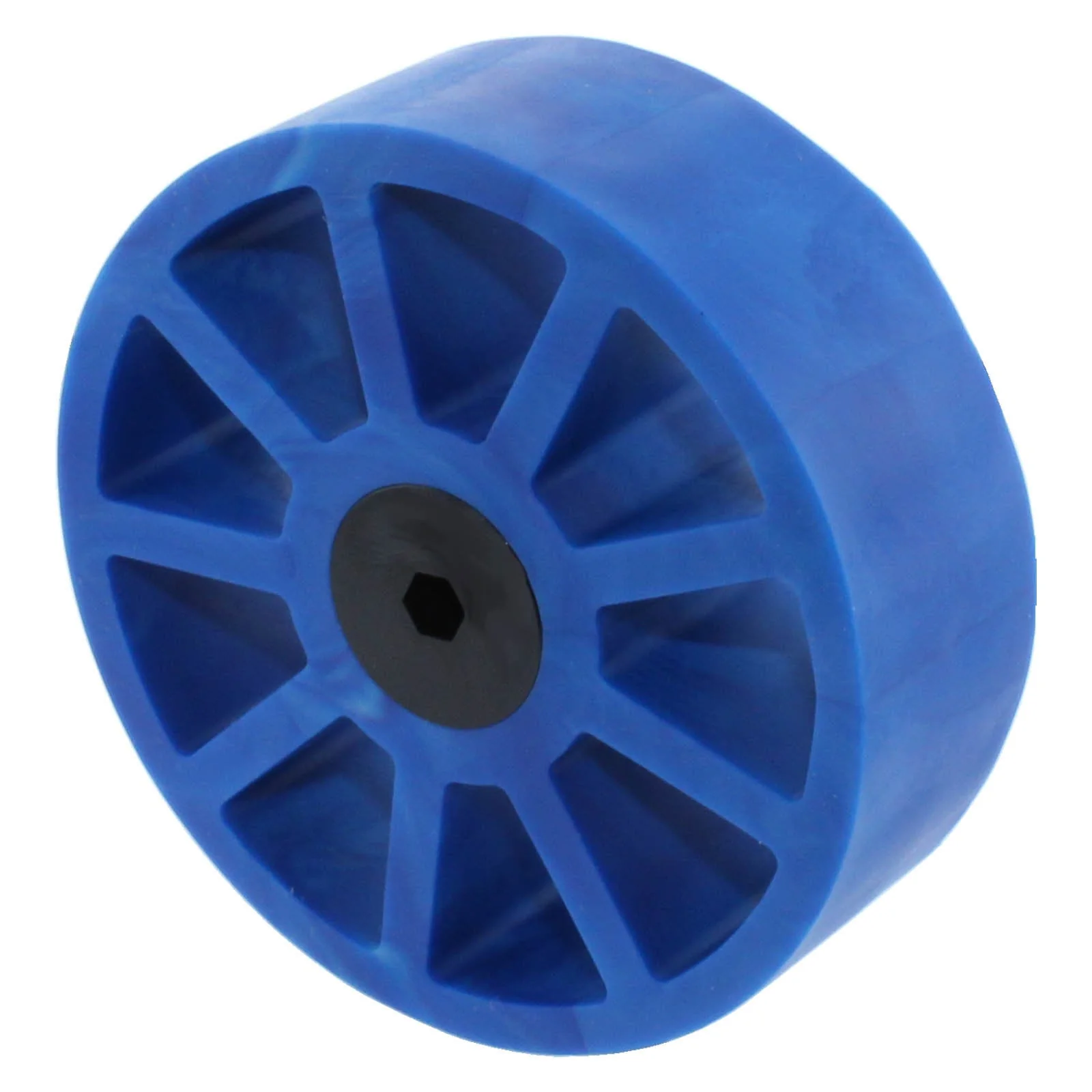

  • Compliant wheels are not intended for moving robots, but moving objects. The now ubiquitous intake wheel in competition robotics, compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

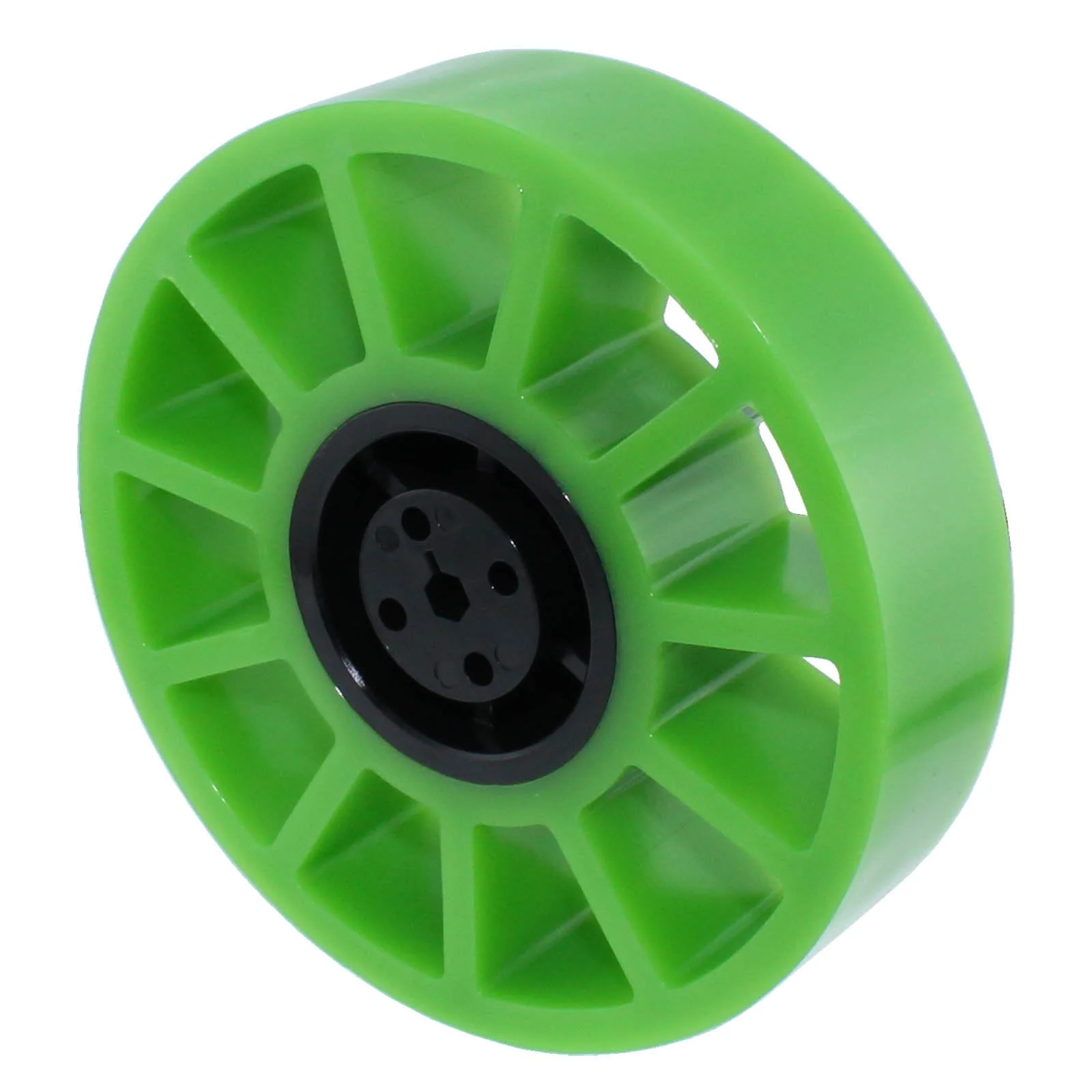

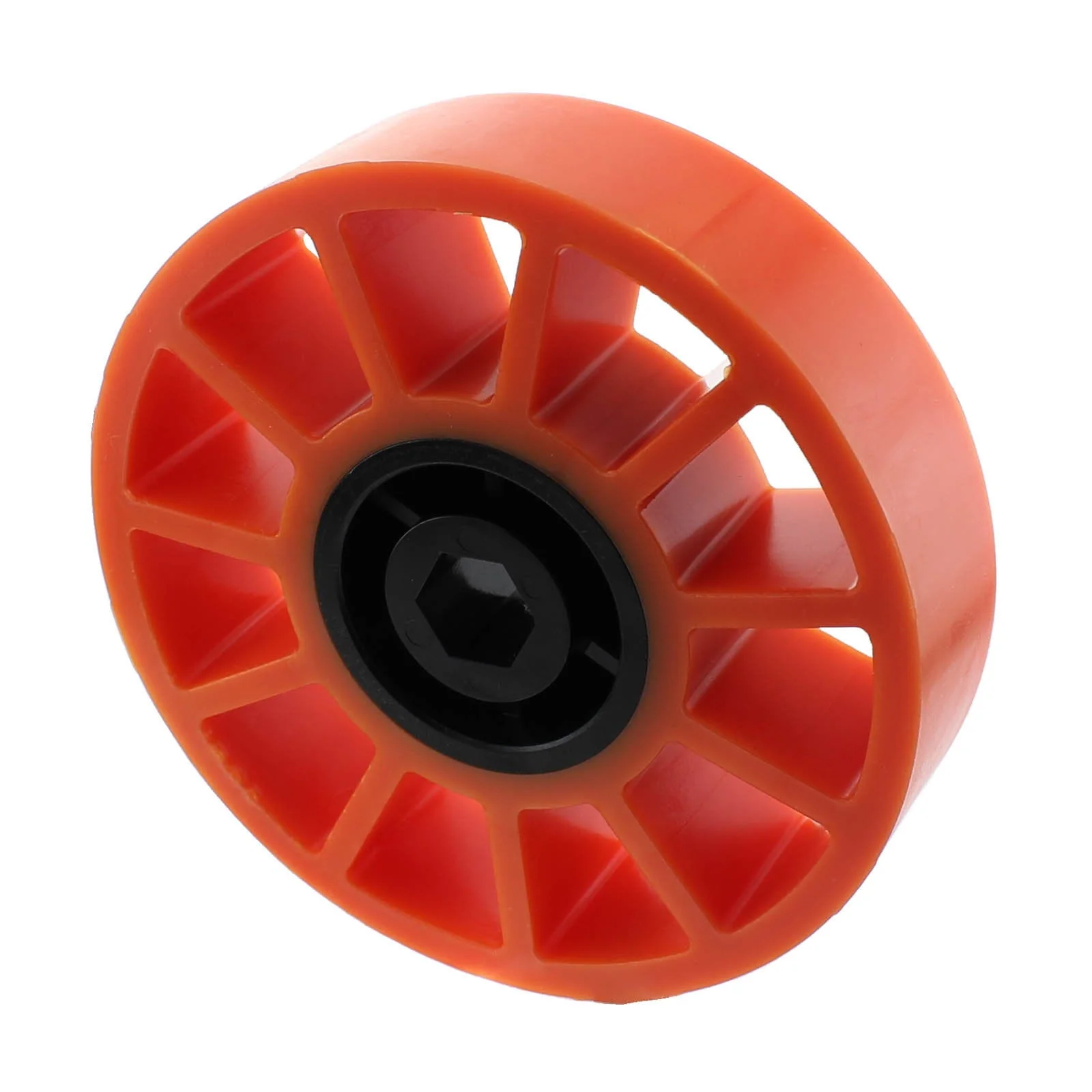

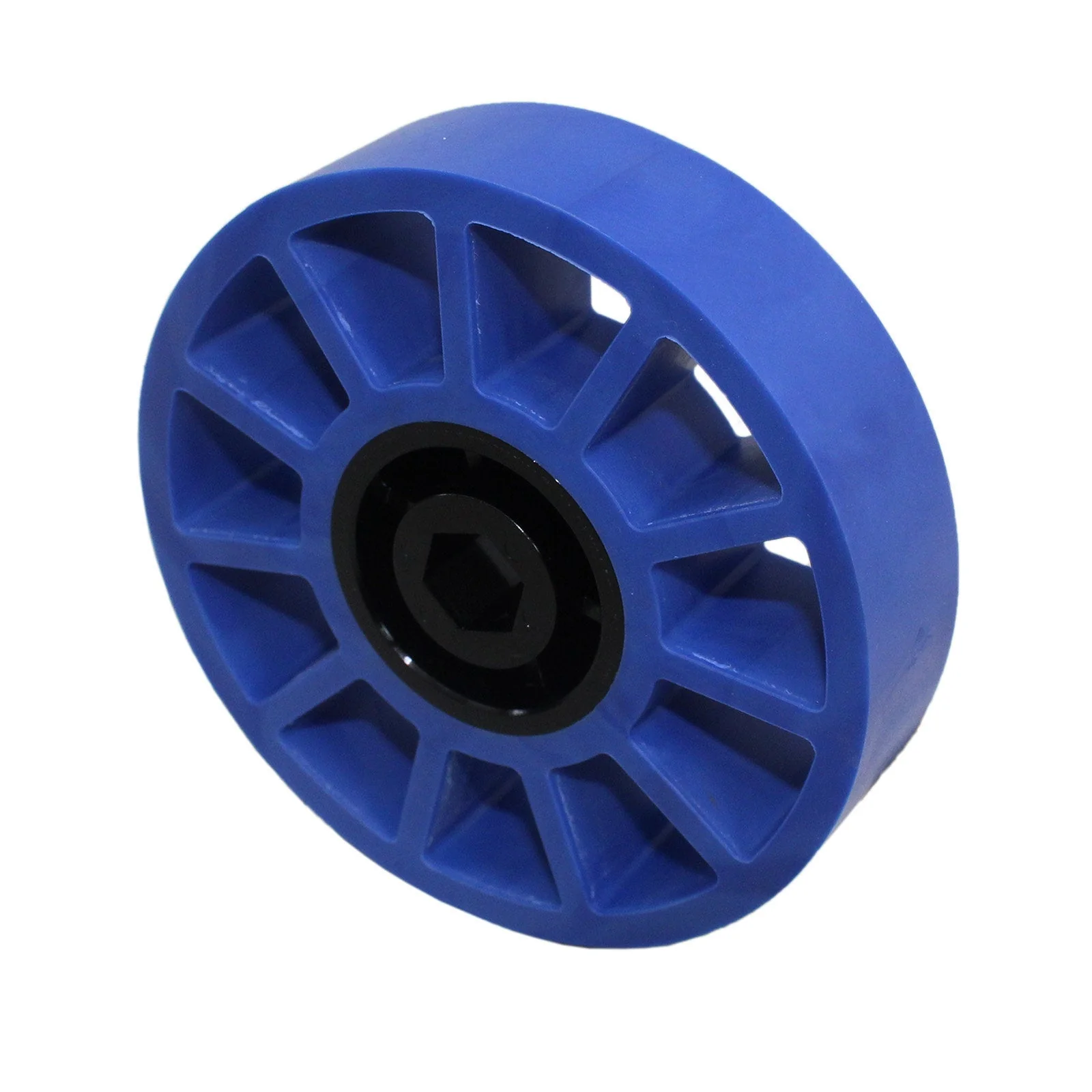

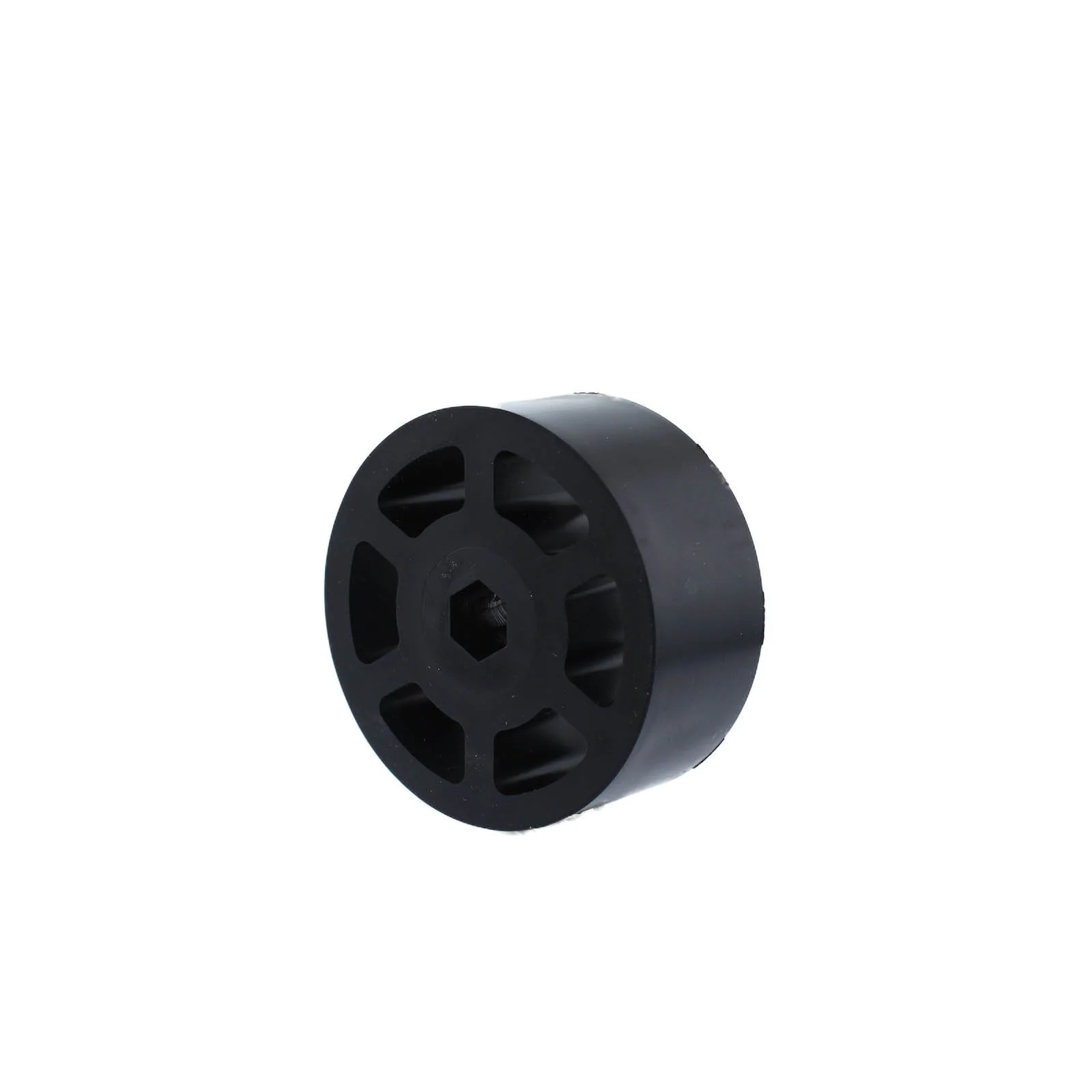

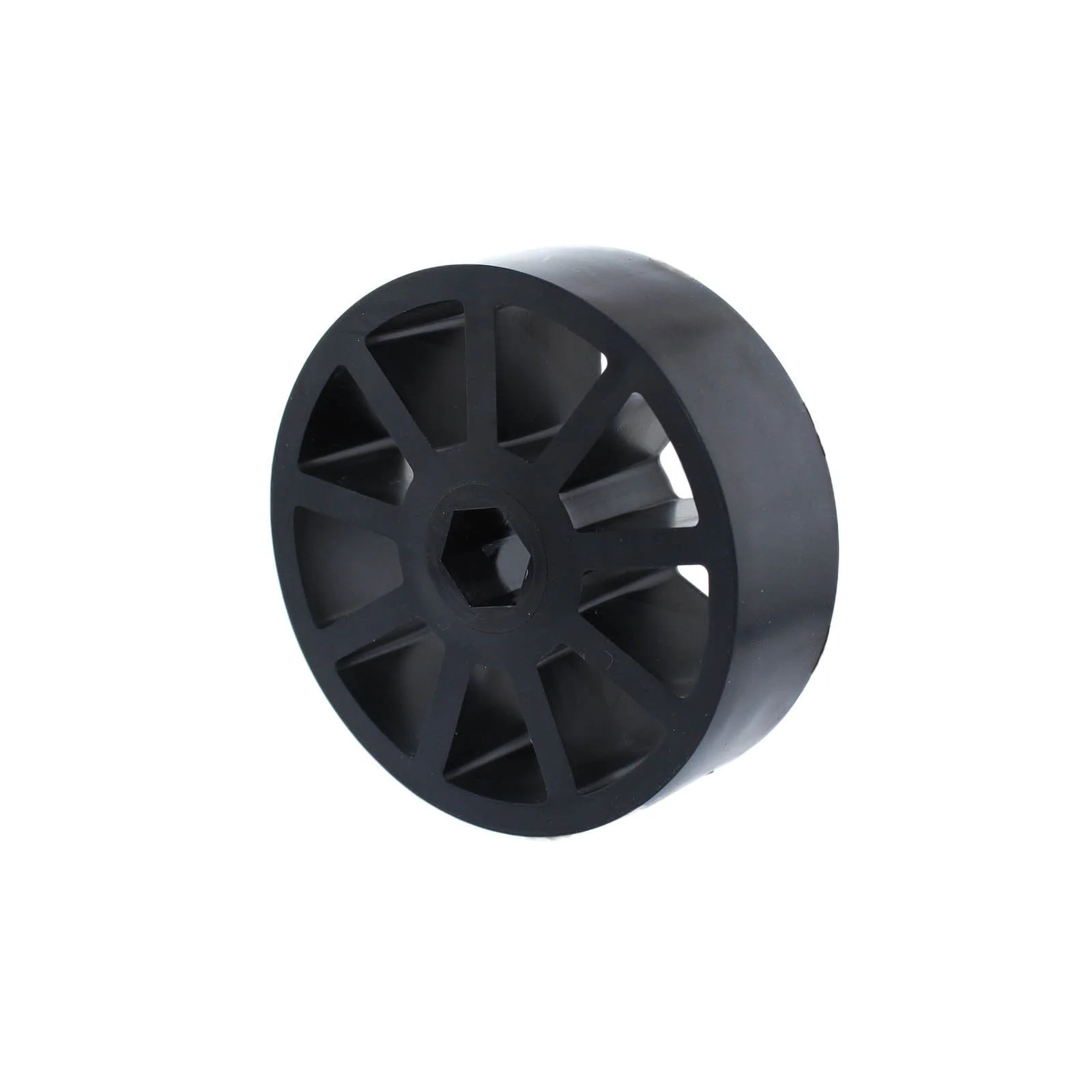

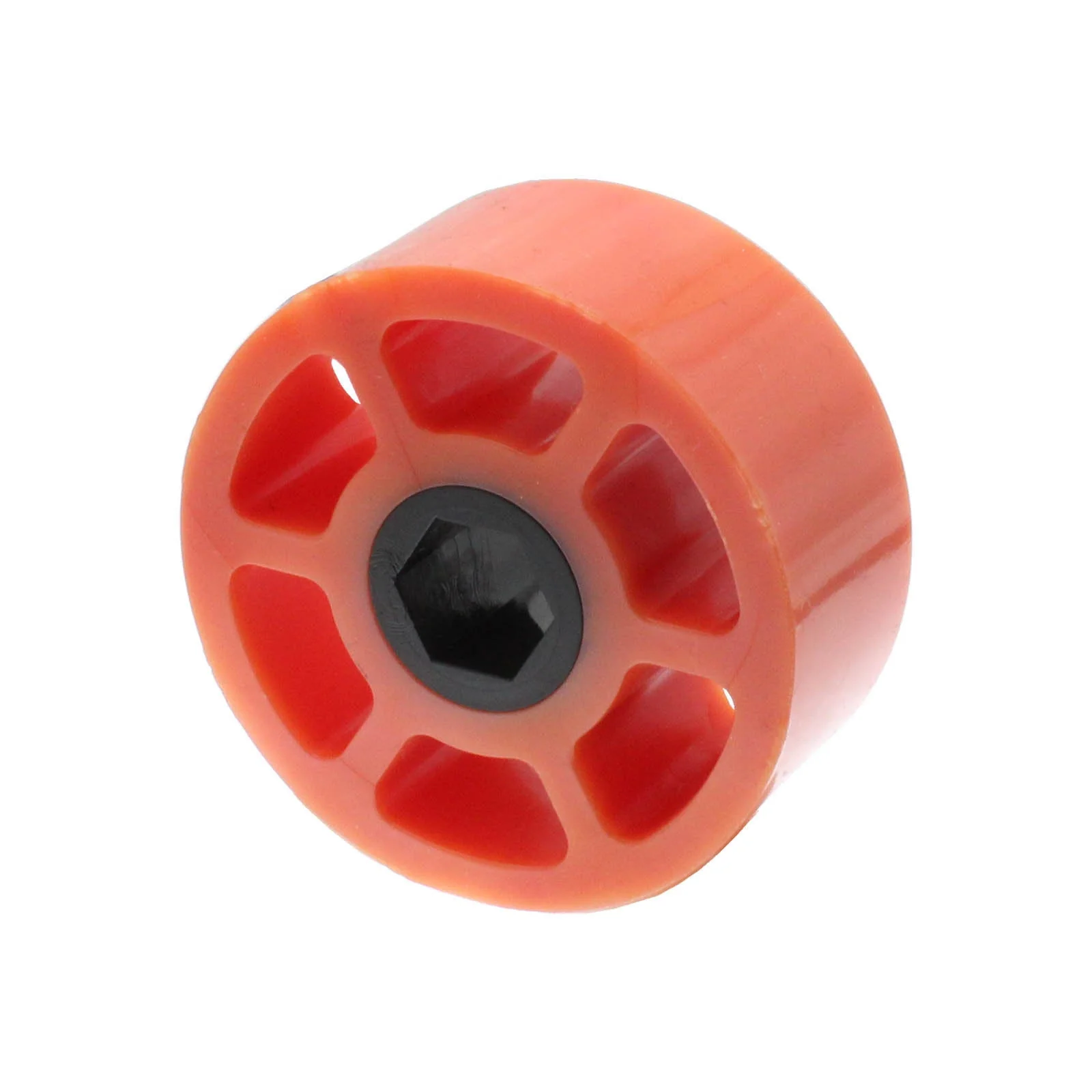

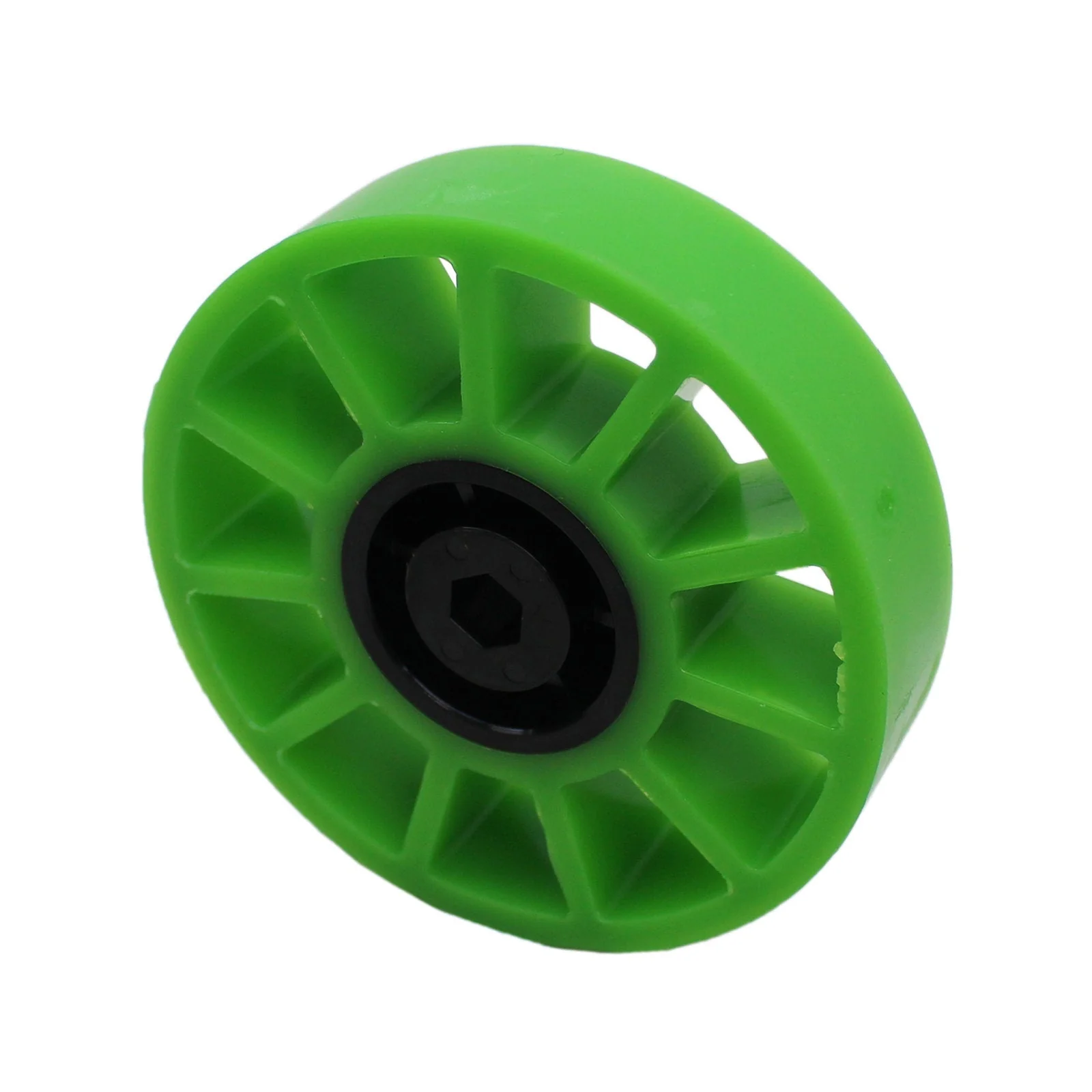

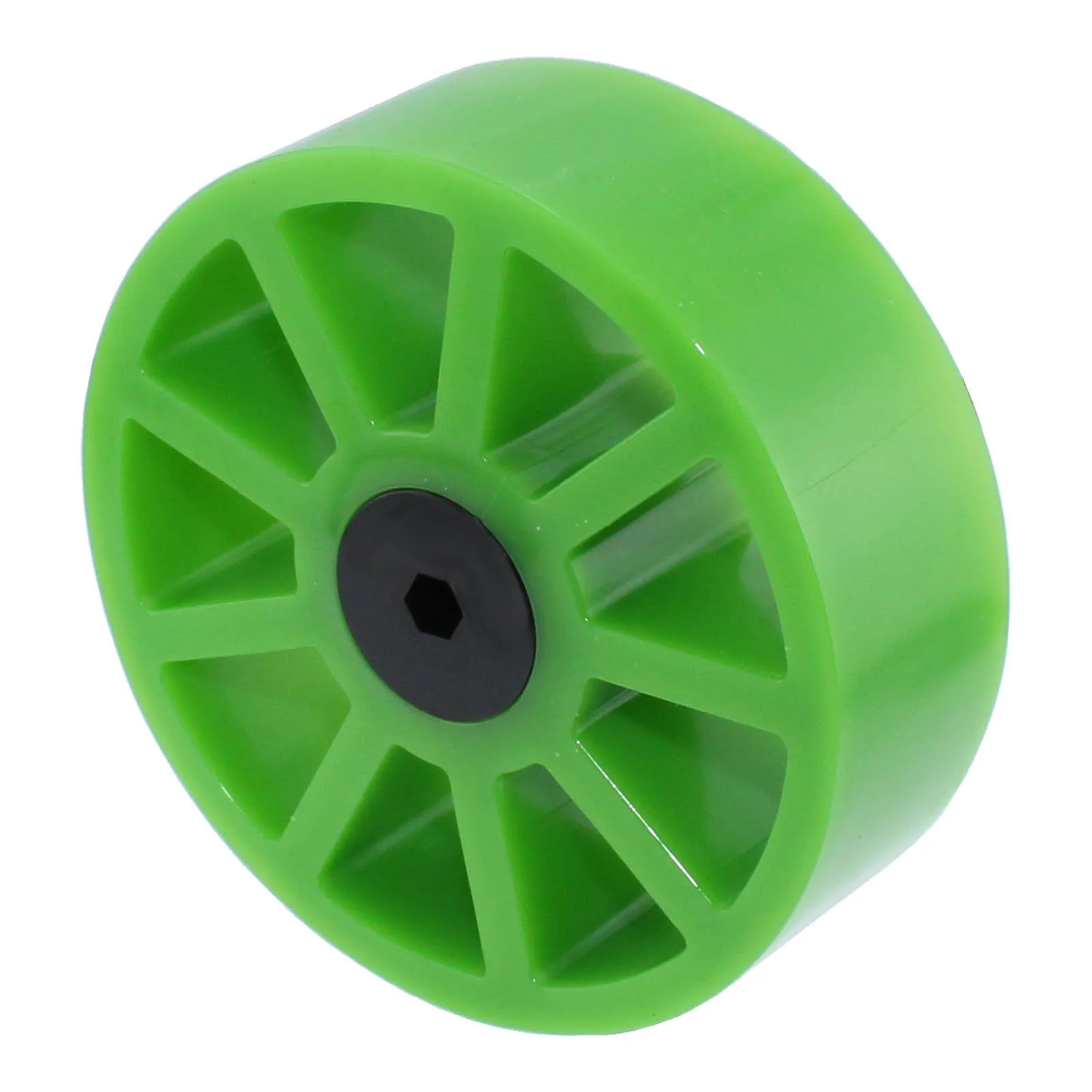

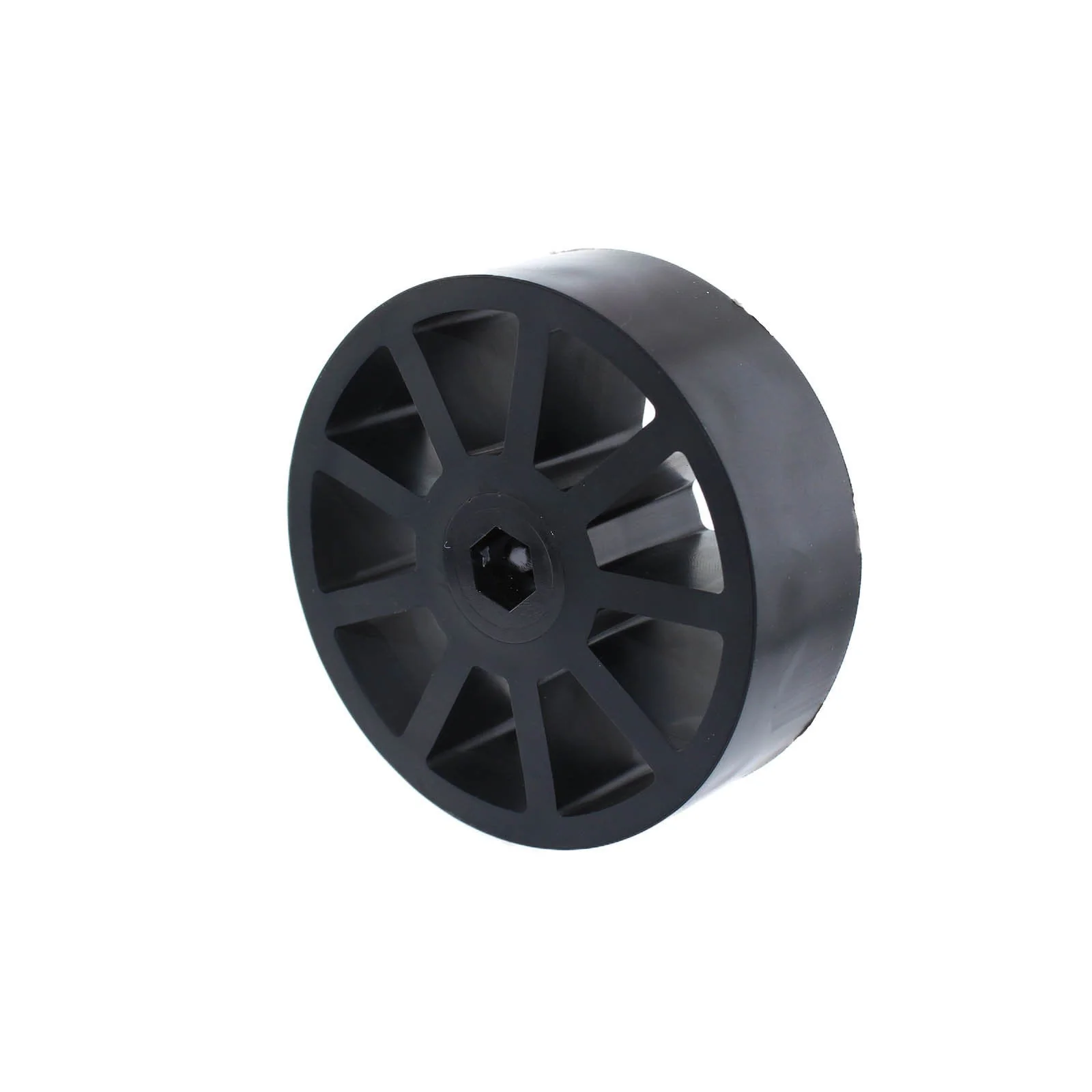

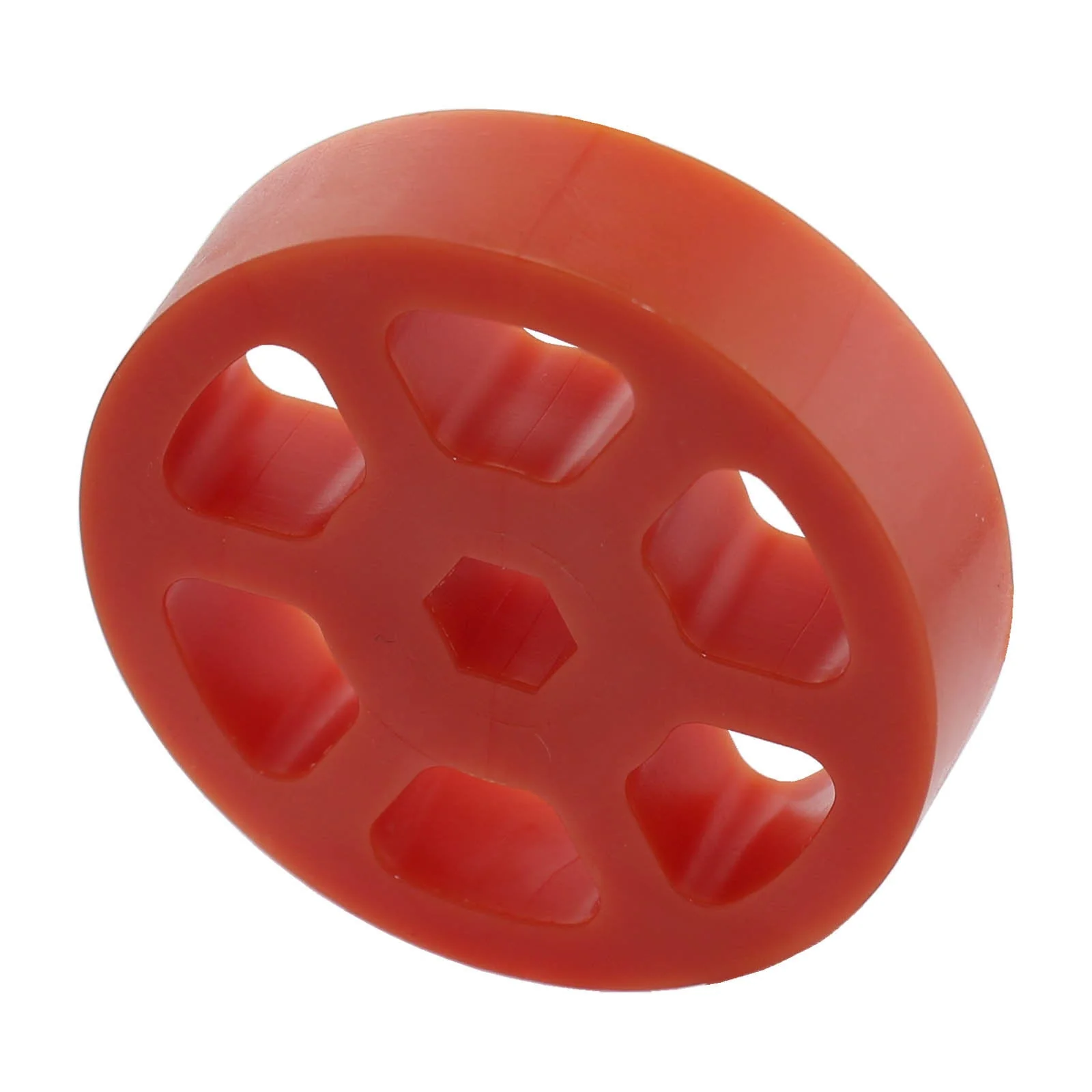

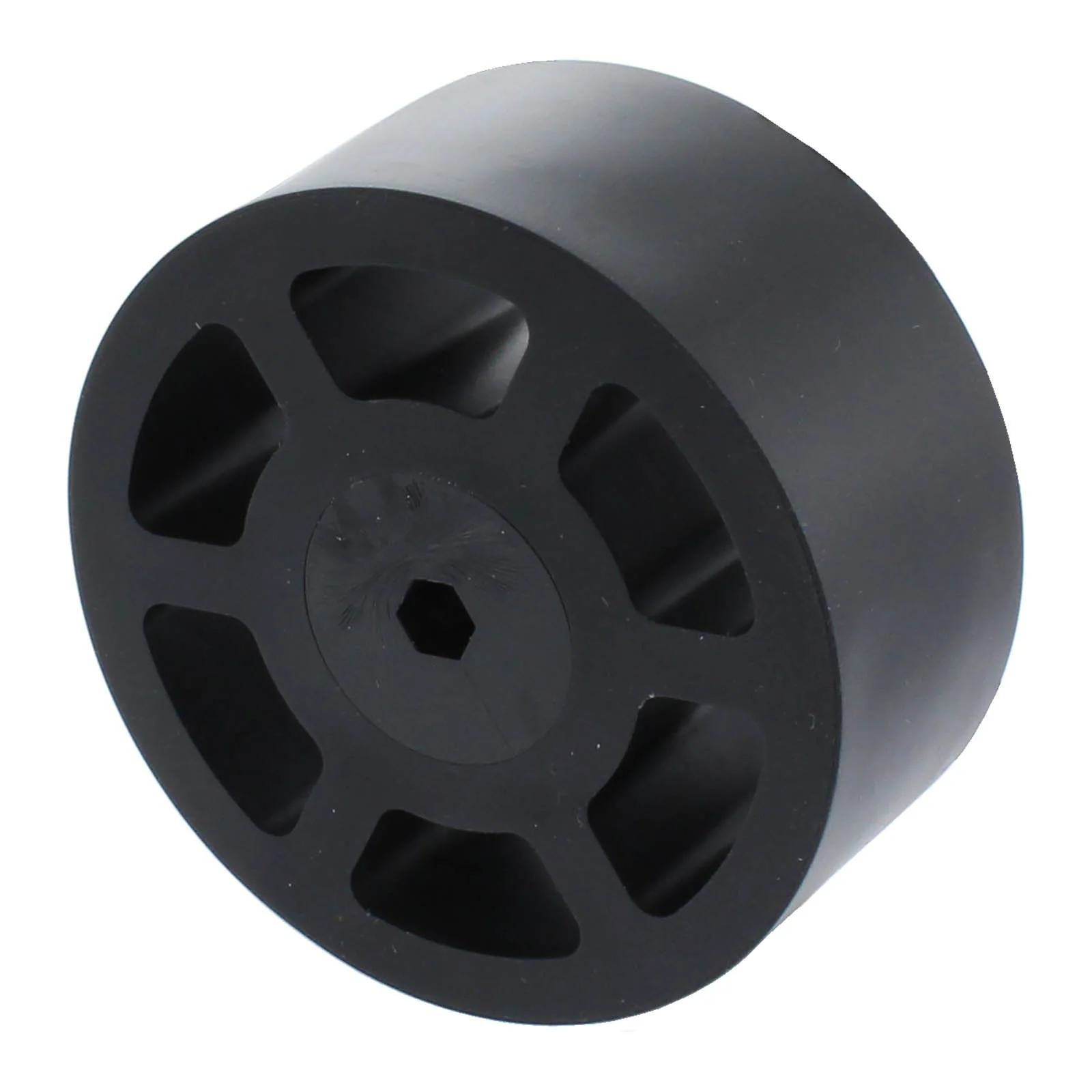

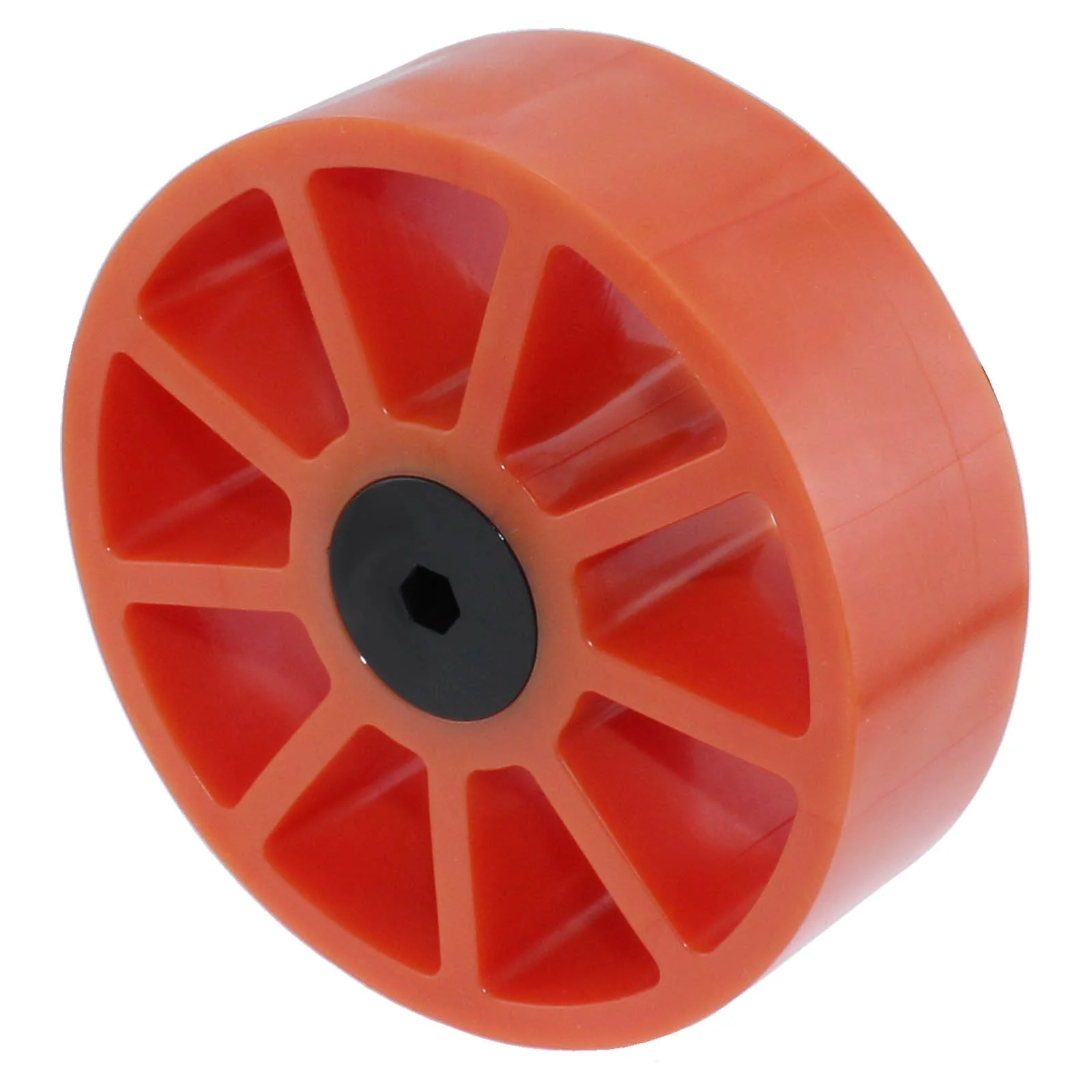

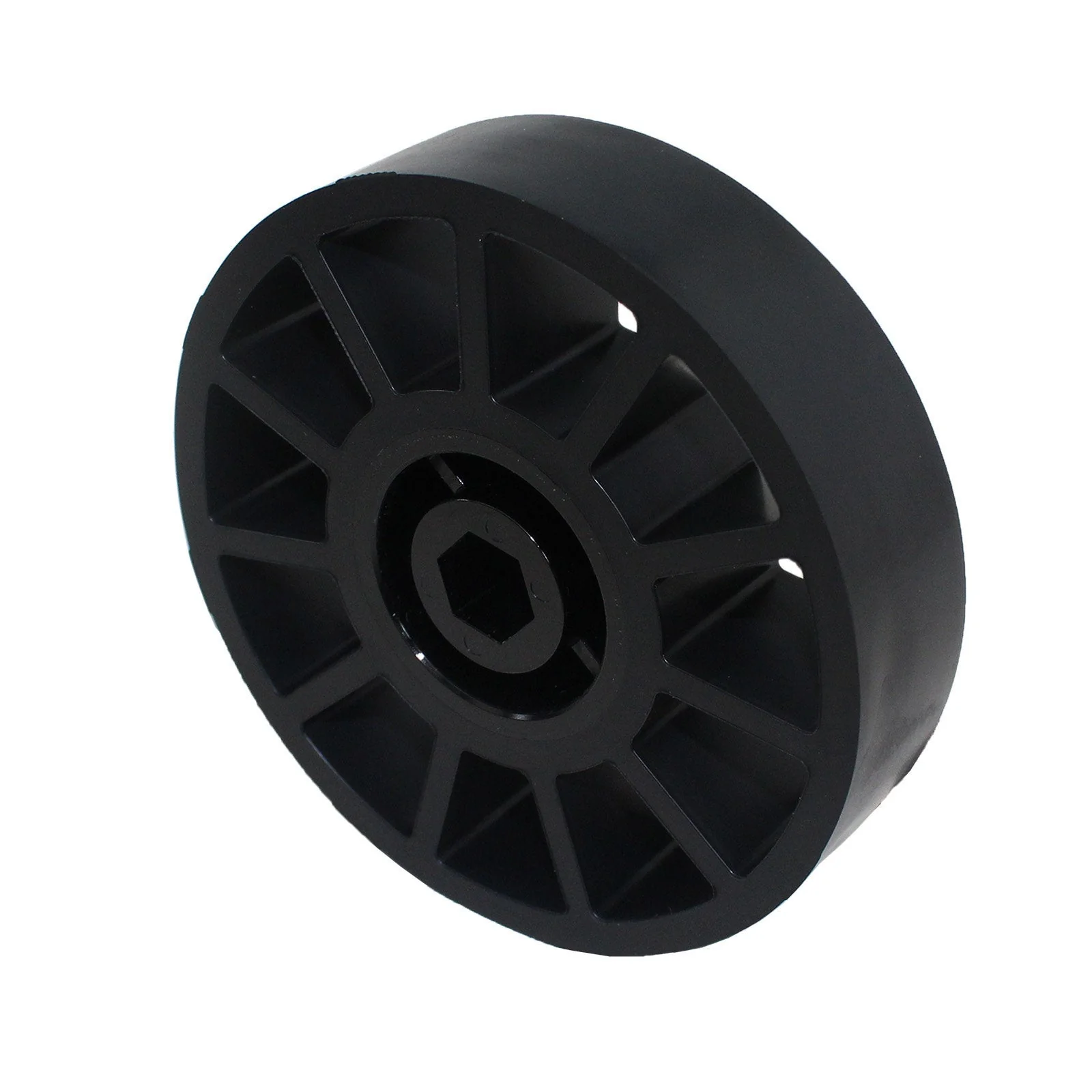

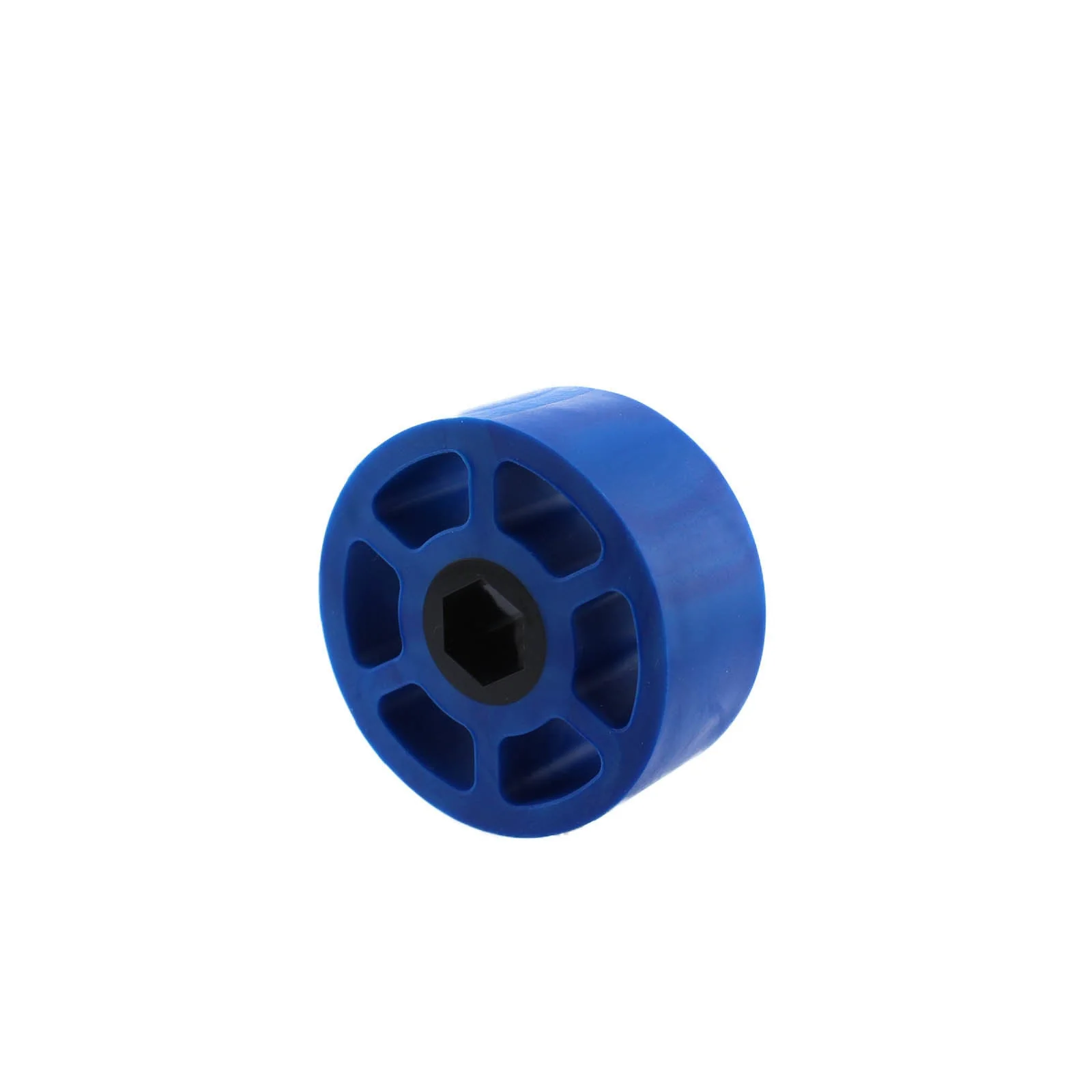

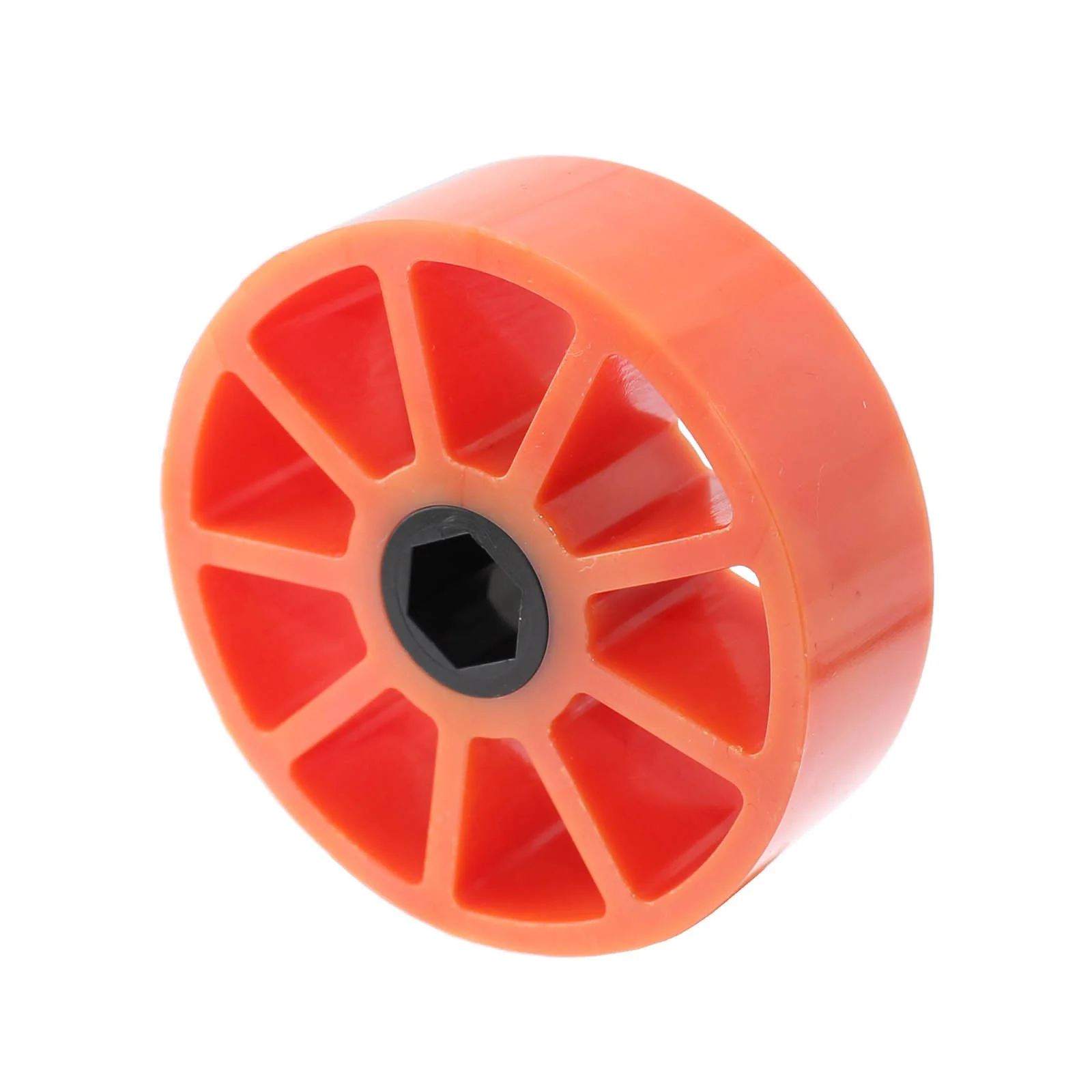

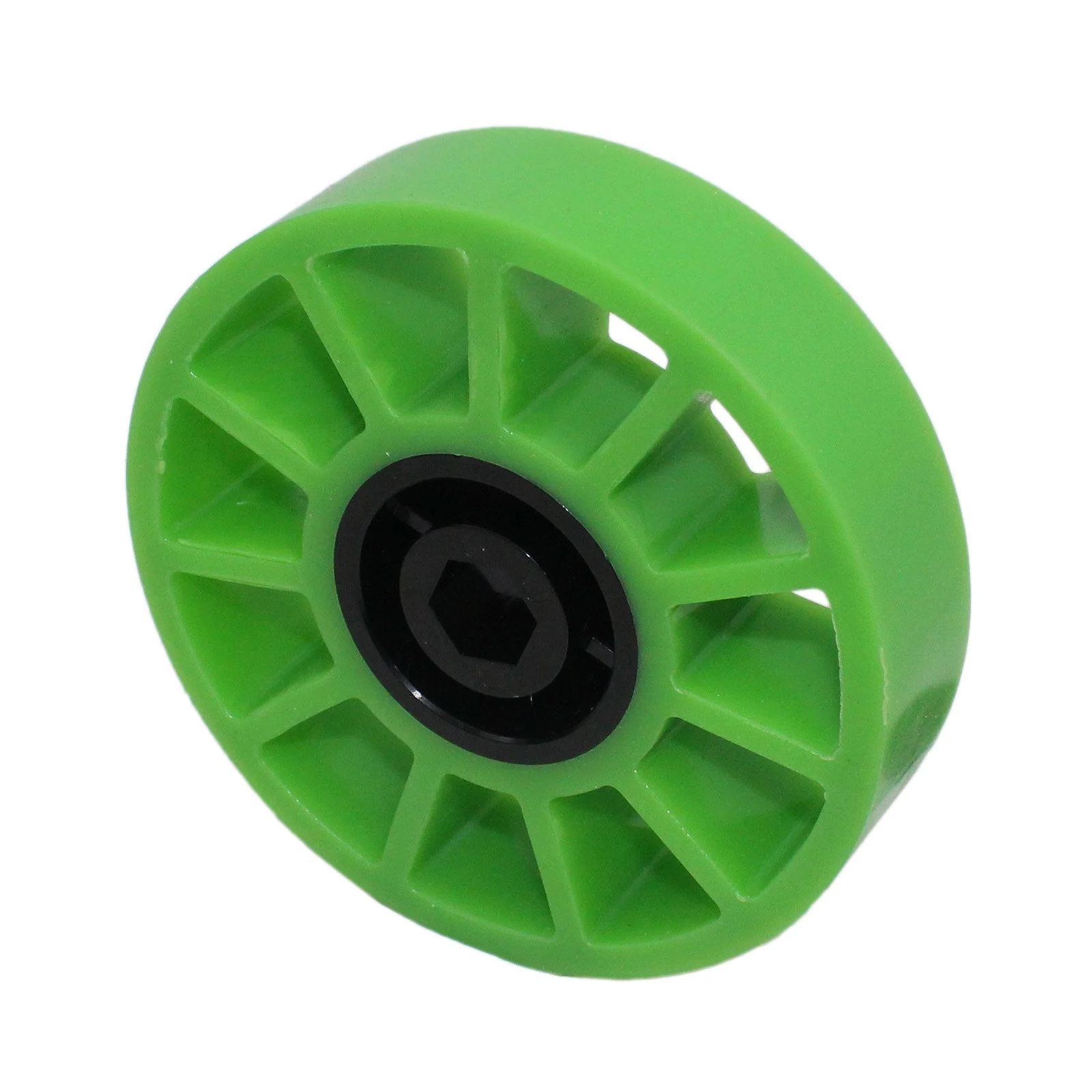

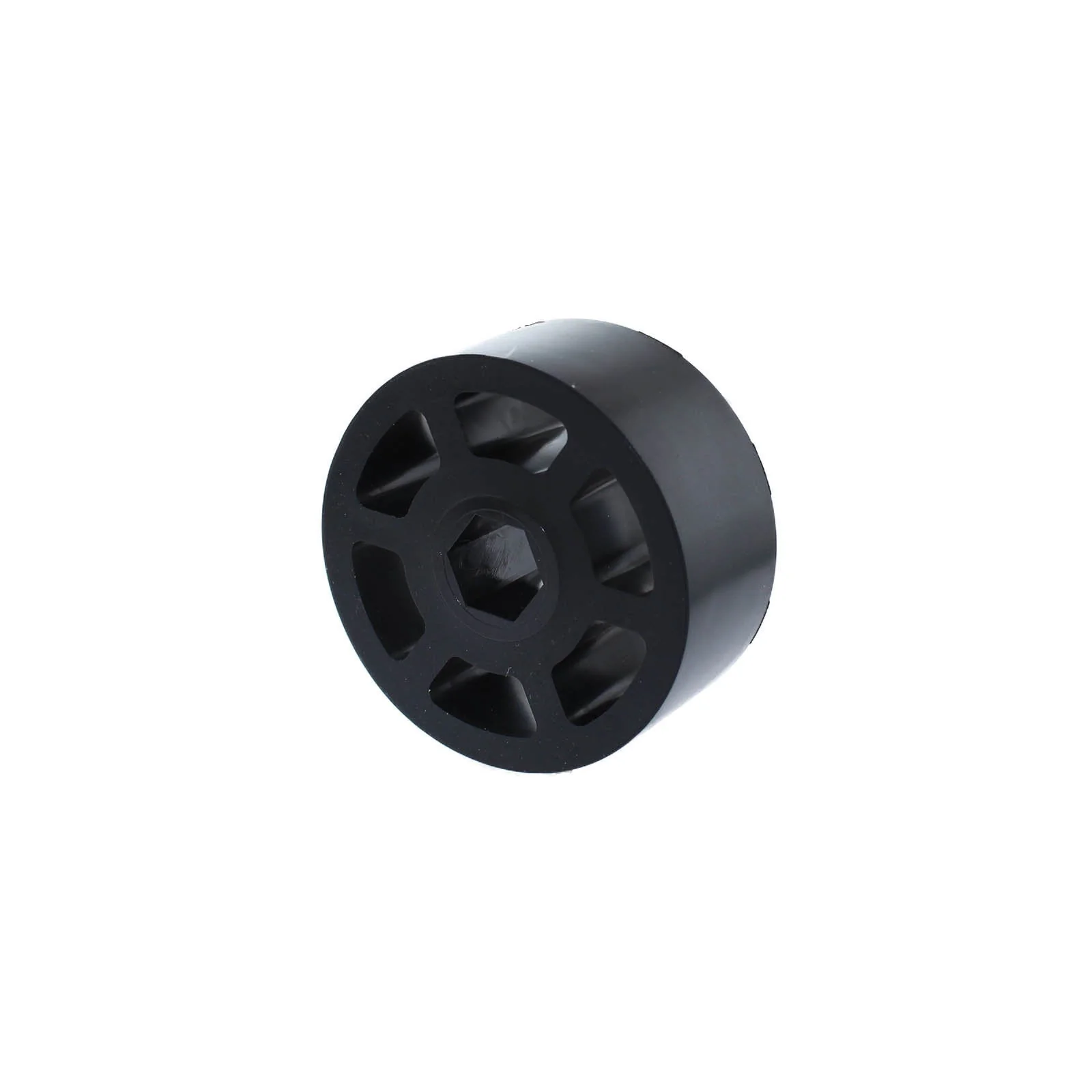

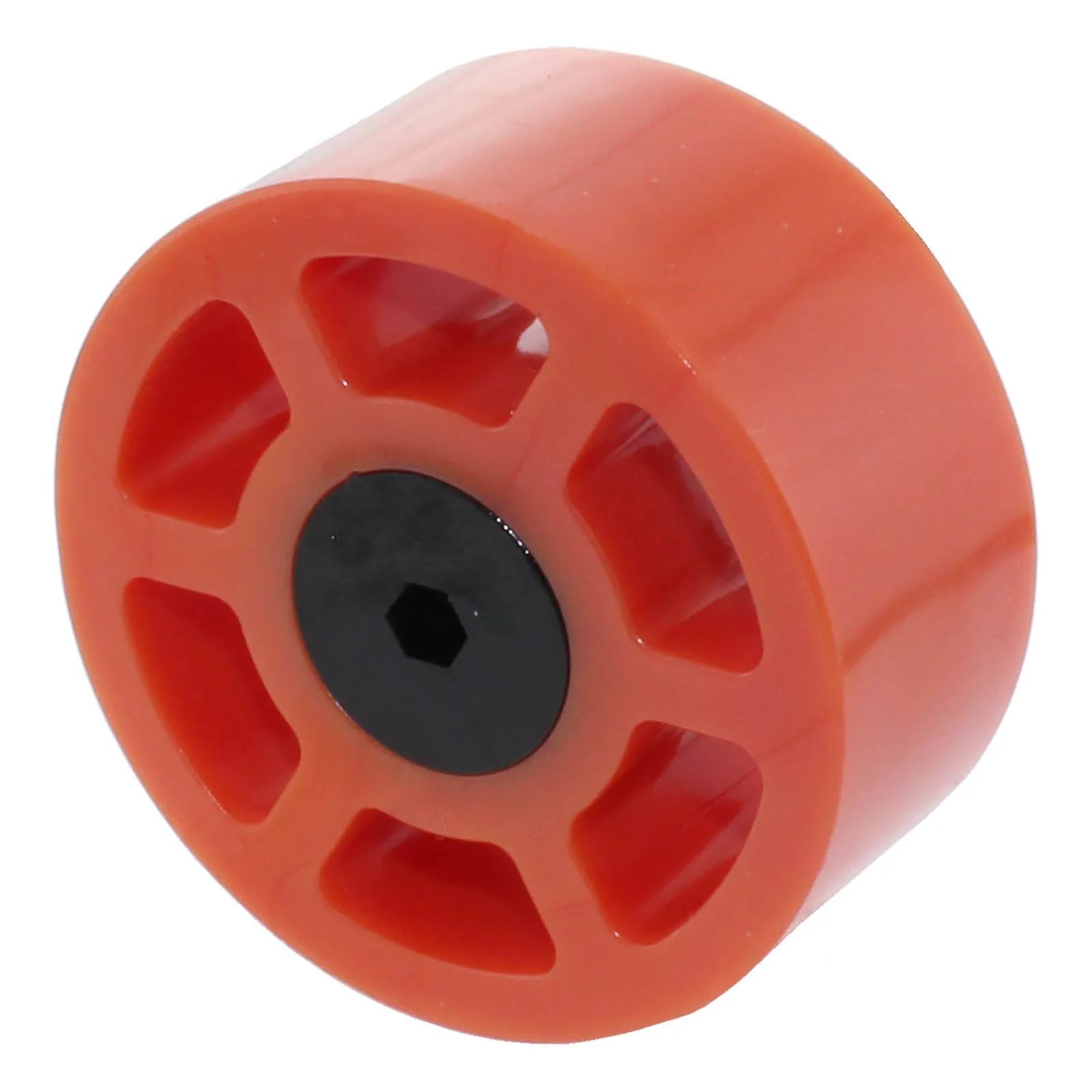

    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest, grippiest, and most compliant around objects, while orange (40A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also gives the harder wheels a higher RPM rating.
    The hex bore wheels are designed to be used on a hex shaft, bunched together, or separated by collar clamps or hex spacers.

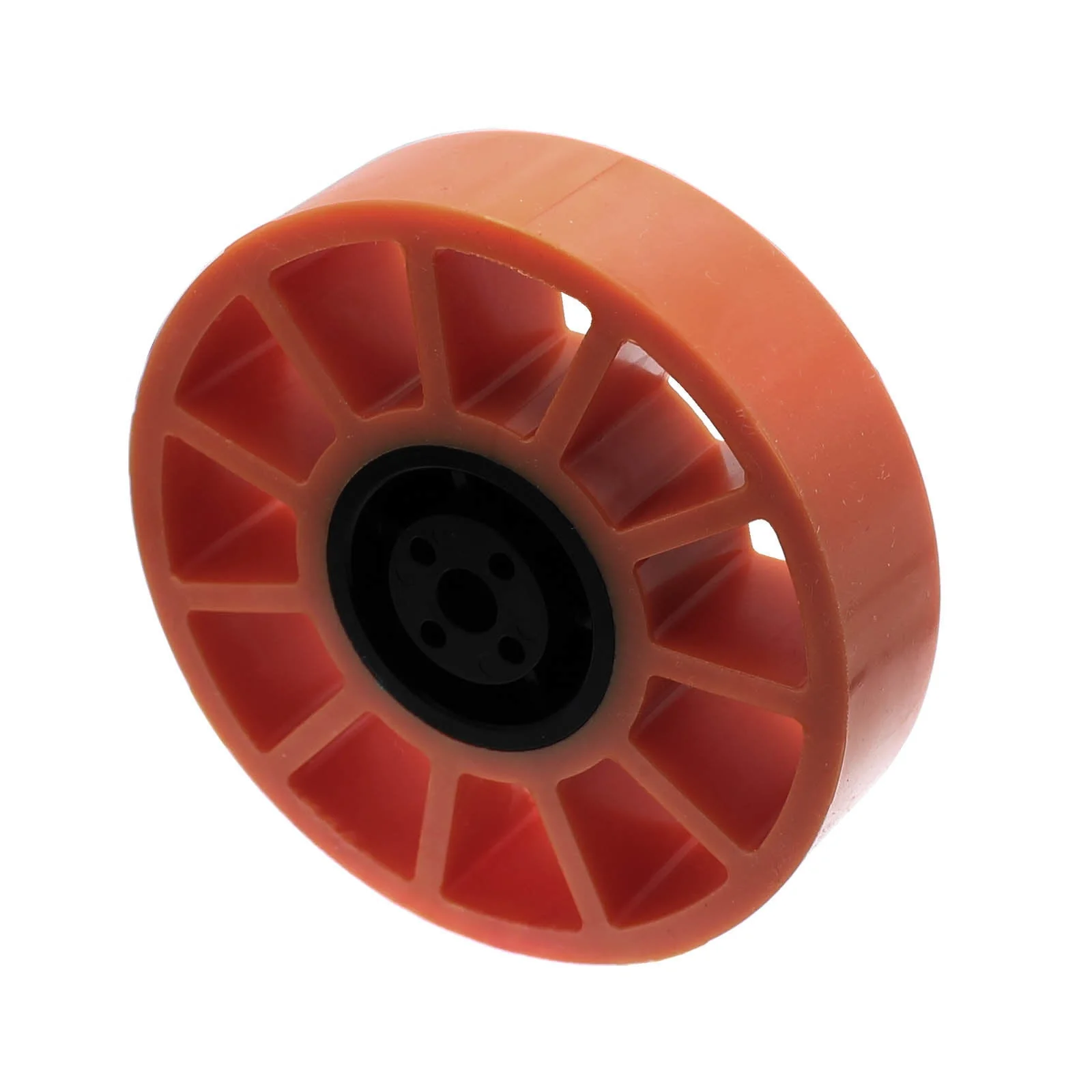

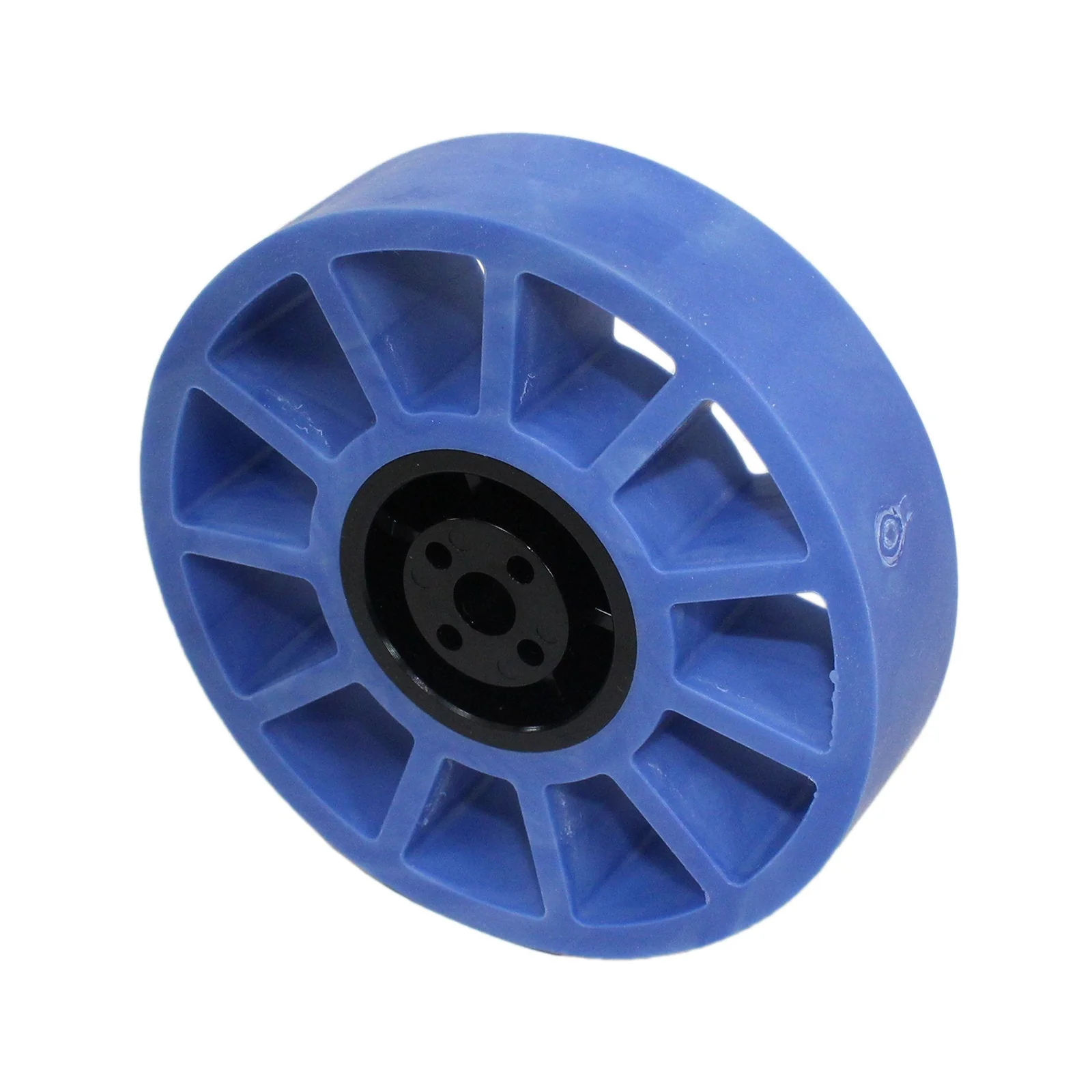

    The Nub Bore wheels are designed to work with our line of Nubs.

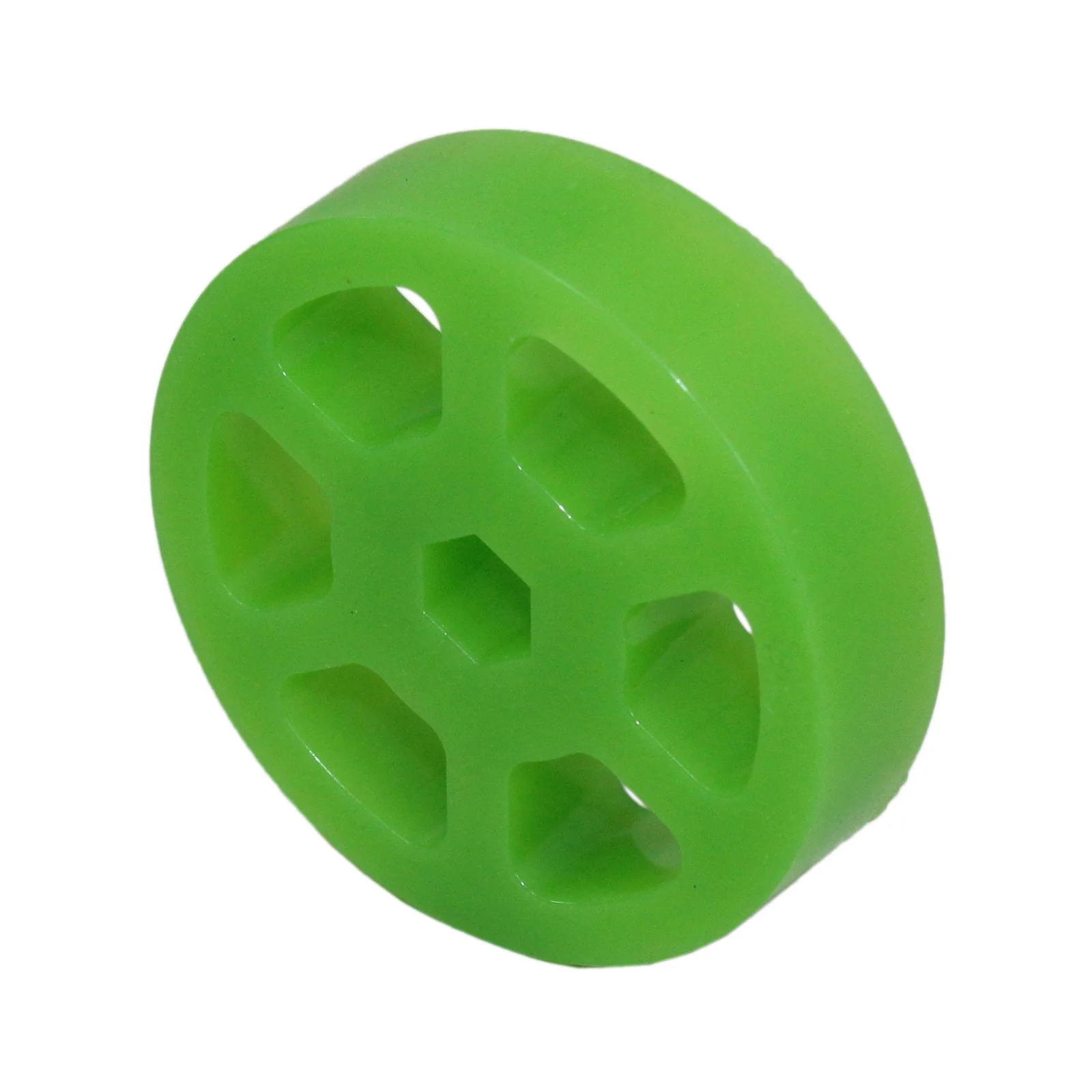

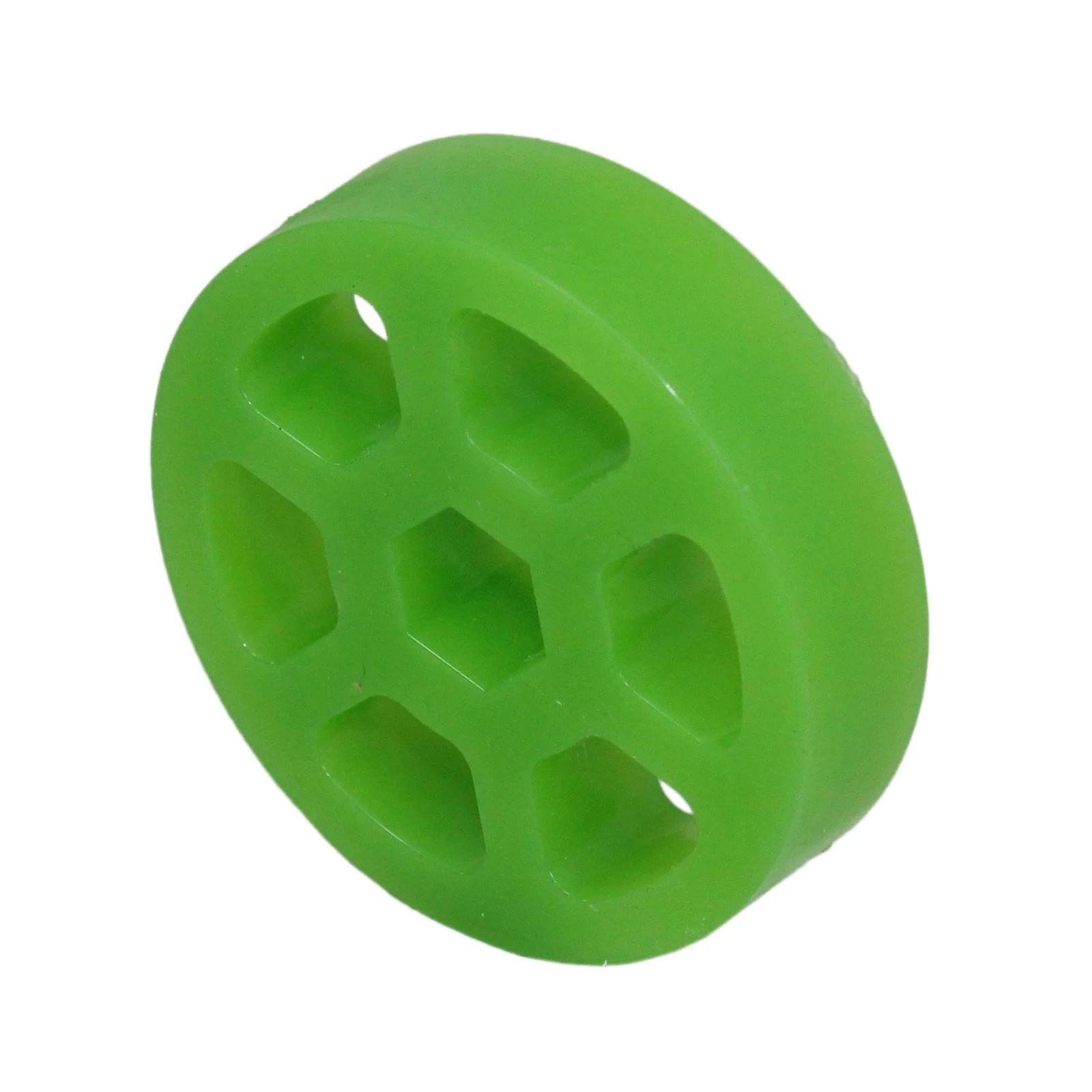

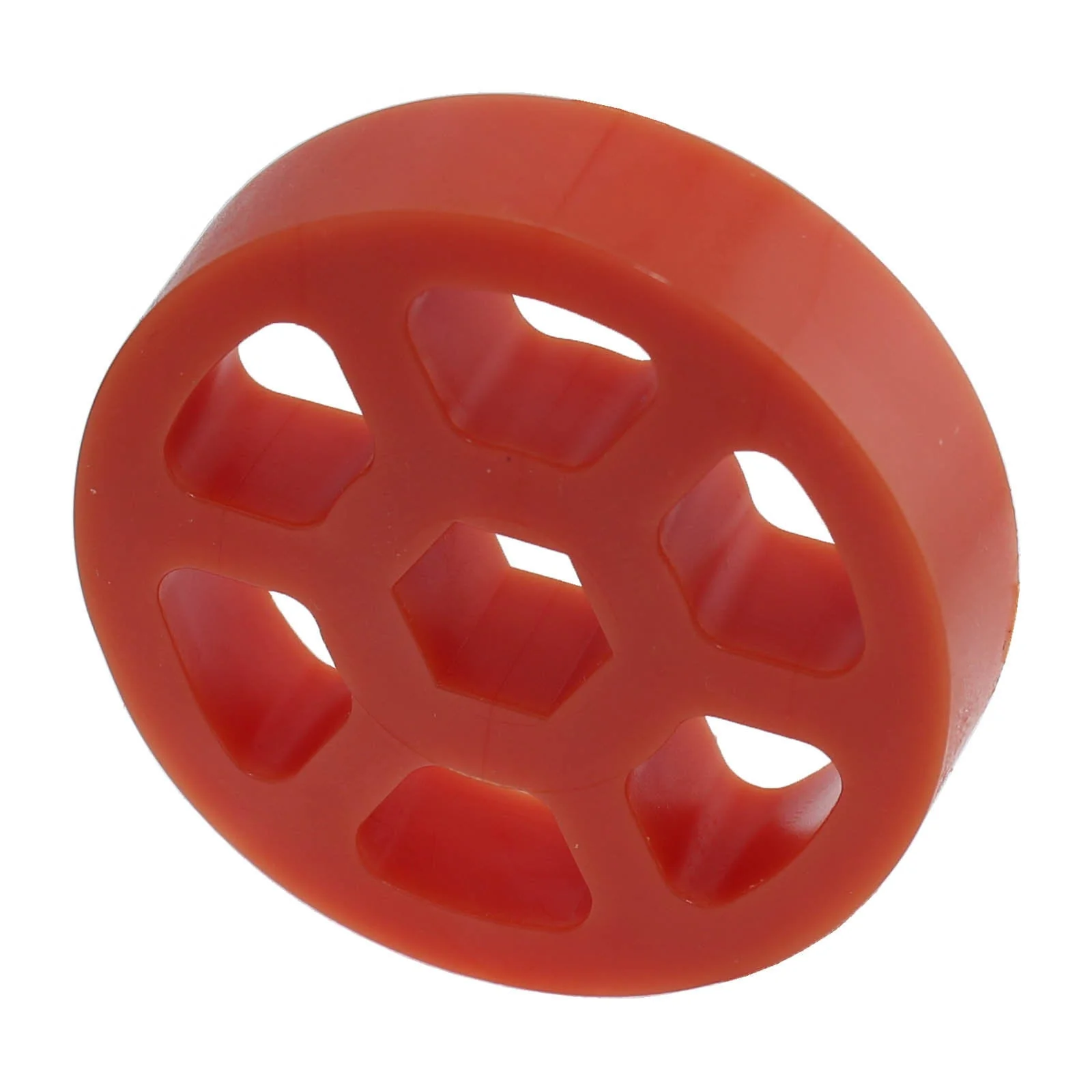

    The hex bore on the 2 in. versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:
    Compliant Wheel Sizing
    • Bore: 0.500 in. [12.7 mm] (1/2) Hex, 3/8 in. Hex, 5mm Hex, Nub
    • Color: Green, Black, Blue, Orange
    • Core Material: Polycarbonate
    • Diameter: 2 in., 2.25 in., 3 in., 4 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
    • Maximum RPM: 3500 - 9000 RPM
    • Tread Material: TPU
    • Weight: 2 in. = 0.035 lbs., 2.25 in. = 0.08 lbs., 3 in. = 0.12 lbs., 4 in. = 0.228 - 0.269 lbs.
    • Width: 2 in. = 0.5 in., All others = 1 in.
Select Bore
Select Diameter
Select Durometer
From $2.17

Original: $6.20

-65%
Compliant Wheels—

$6.20

$2.17
