AMPD AndyMark Power Distribution
- Description
-

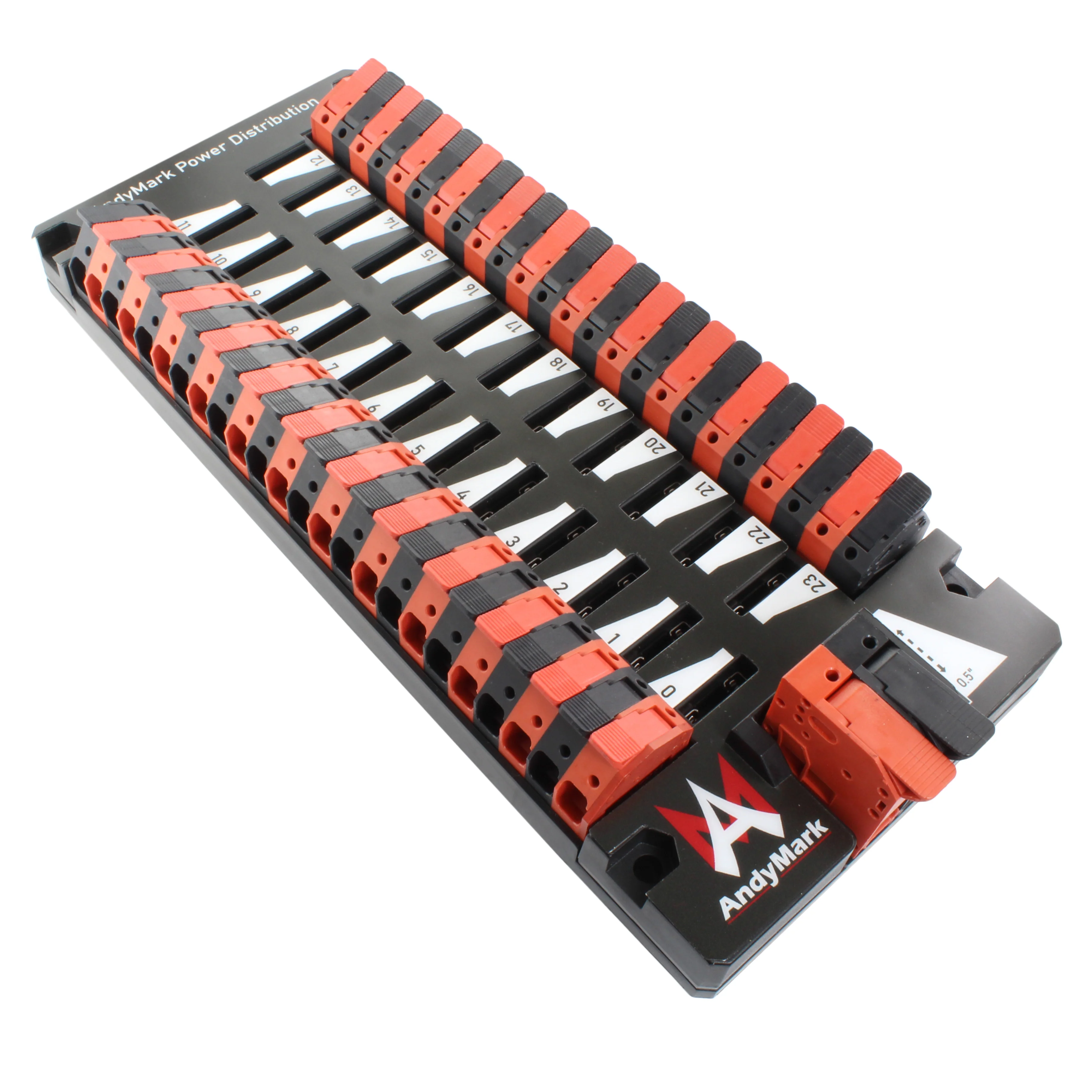

The AMPD Power Distribution Board provides 24 independently fused output channels rated for 40 A continuous current per channel at 12 V. Each channel uses a standard ATO/ATC fuse and fully insulated toolless lever connector for safe, reliable power distribution. The boardās 22.5Ā° angled outputs and Ā½ā³ hole-grid mounting pattern enable clean, accessible, and versatile installation on FRC robots.
-
- Breaker Sizes: ATO/ATC & ATM breakers
- Connector Entry Angle: 22.5 degrees
- Connector Style: Toolless Lever
- Max Input Continuous Current: 120A
- Max Output Continuous Current: 40A
- Mounting Holes: #10 bolts on Ā½ā grid
- Nominal Voltage: 12V
- Output Connections: 24 Angled ports
